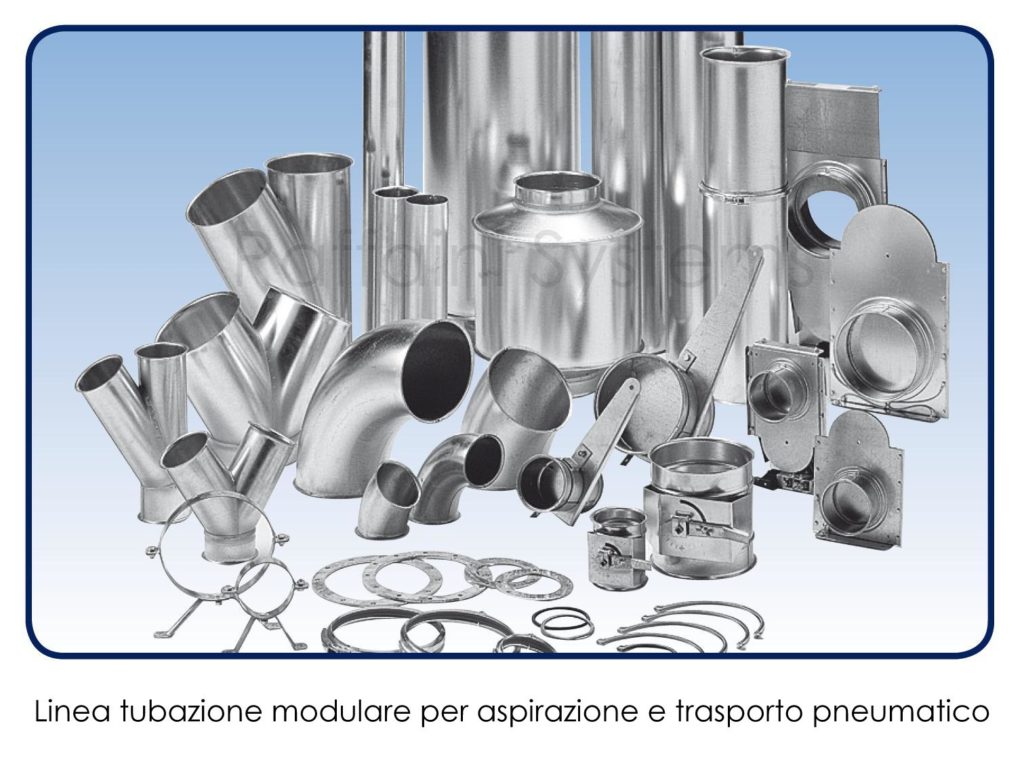

Linee Tubazione – Sistemi Modulari

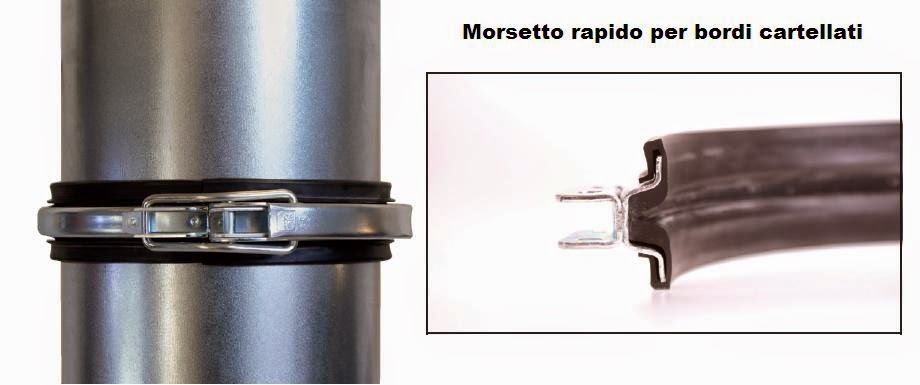

Linea FK con bordi piatti a cartella, ideale per aspirazione rifili e scarti, giri aria e polveri in bassa pressione

Spessori da 0,75 a 3,0 mm

CLIC su immagine per aprire brochure pdf:

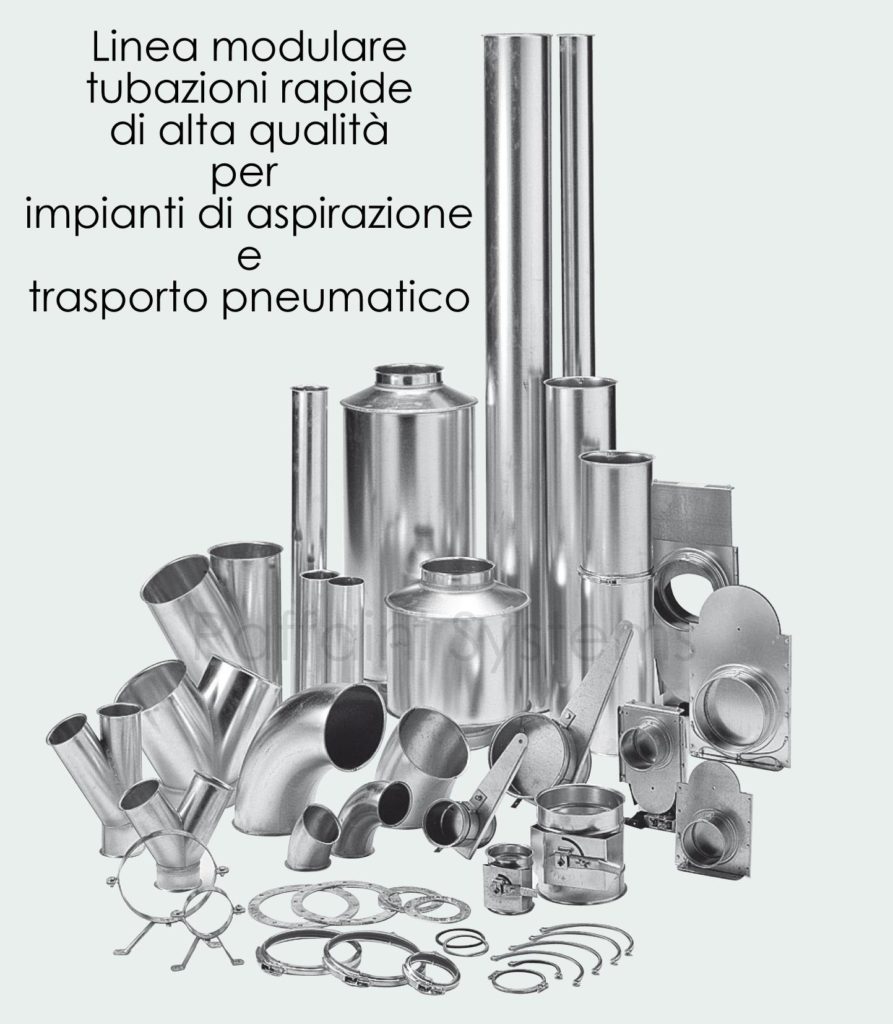

Brochure componenti di tubazione rapida modulare per trasporto pneumatico e ventilazione industriale

BRO - Tubazioni rapide modulari

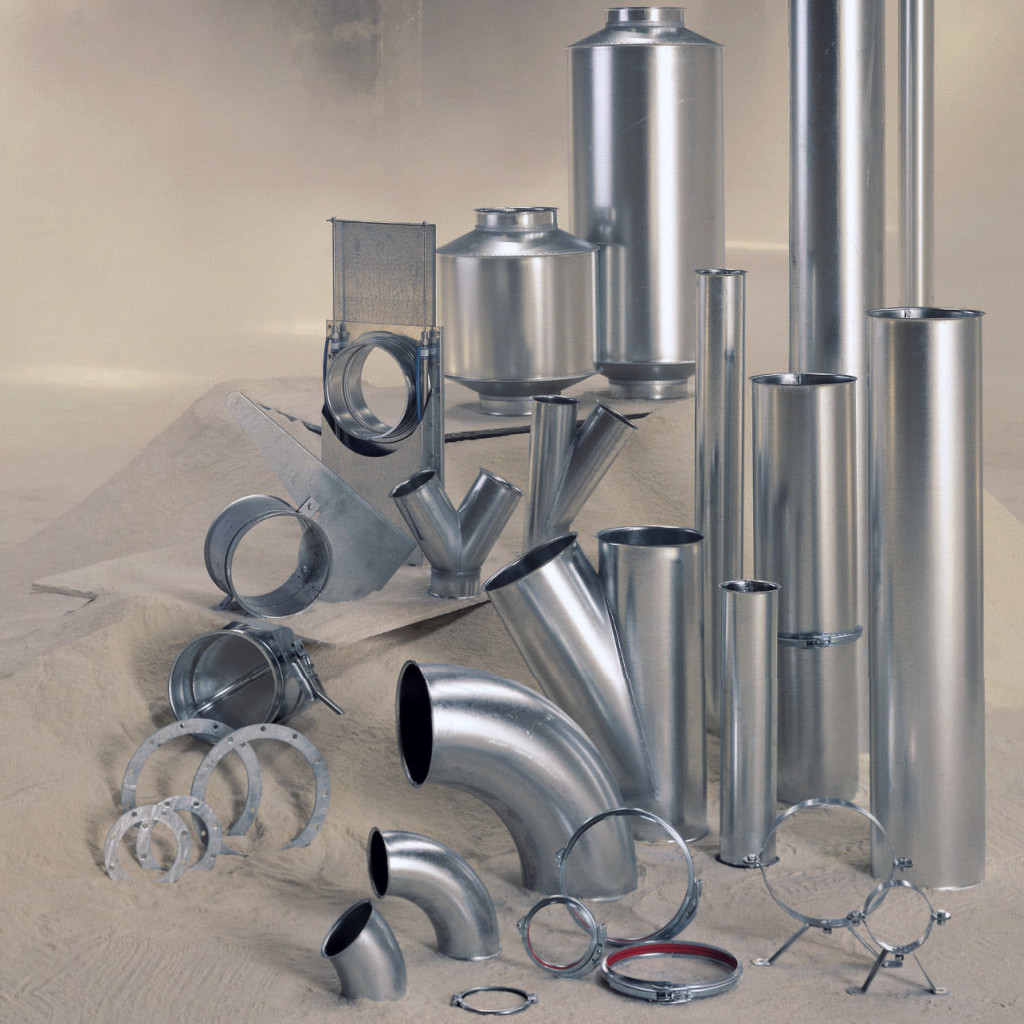

Linea FK in AISI 304 INOX

CLIC su immagine per aprire brochure pdf:
brochure pdf - AISI 304 INOX

brochure pdf - AISI 304 INOX - Tubazione modulare serie FK (BORDI PIATTI A CARTELLA)


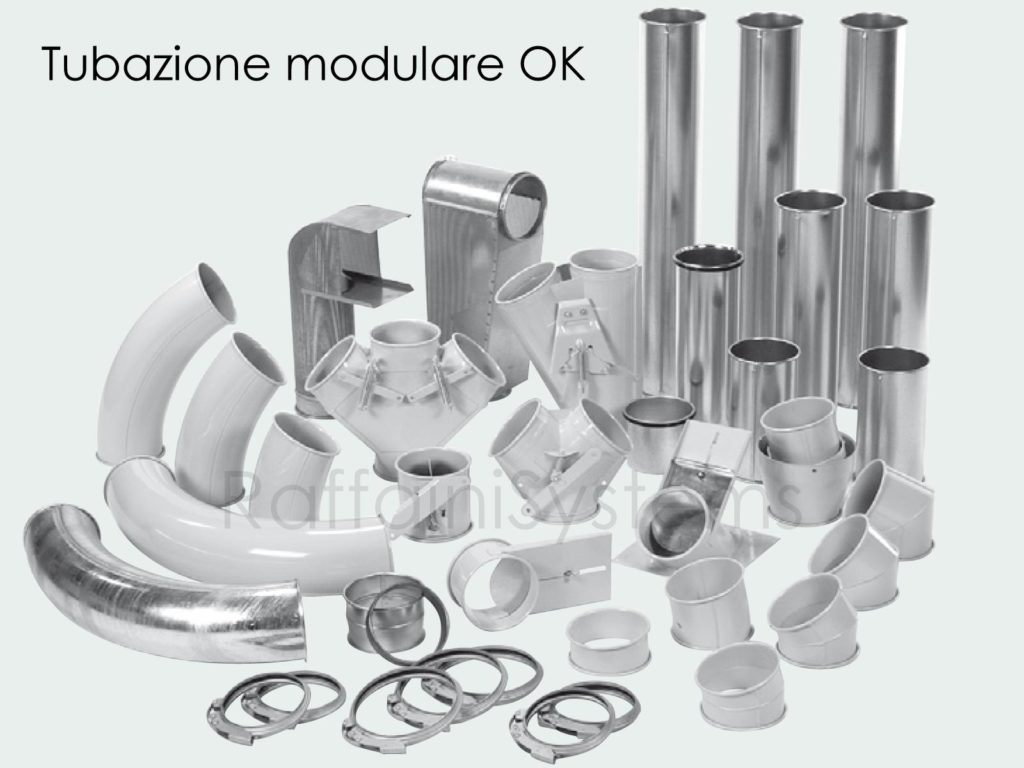

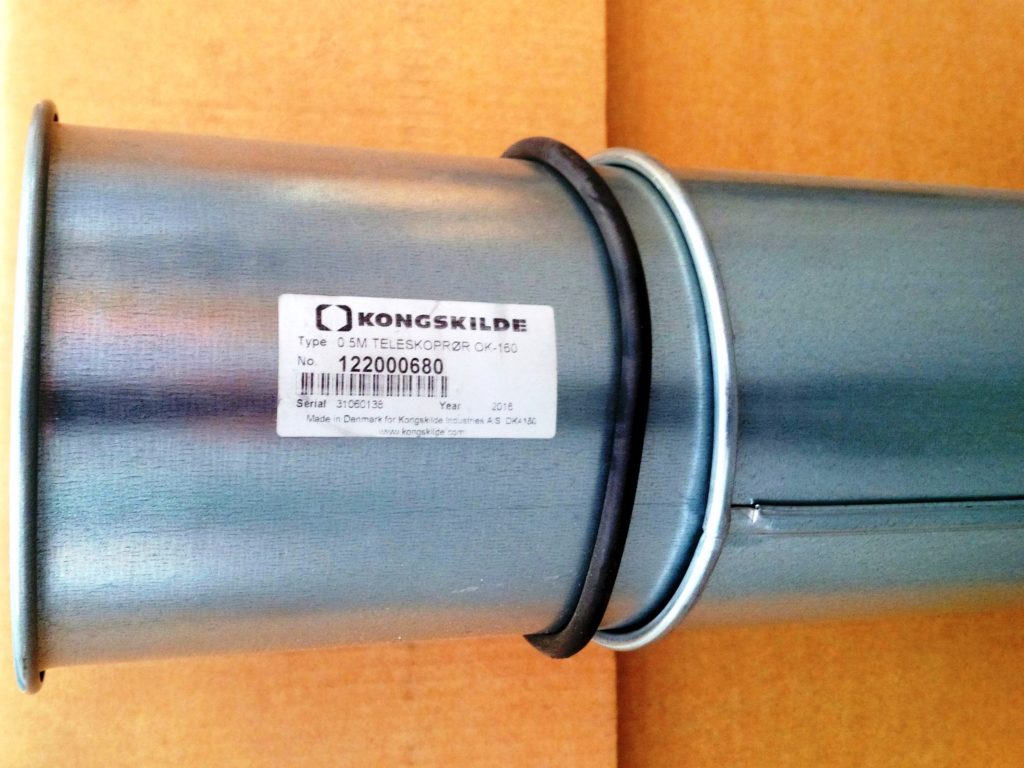

Linea OK con bordi tondi, ideale per trasporto pneumatico di granulati, macinati, cereali

CLIC su immagine per aprire brochure pdf:
brochure pdf - TUBI linea serie OK

brochure pdf - Tubazione modulare serie OK (BORDI TONDI)

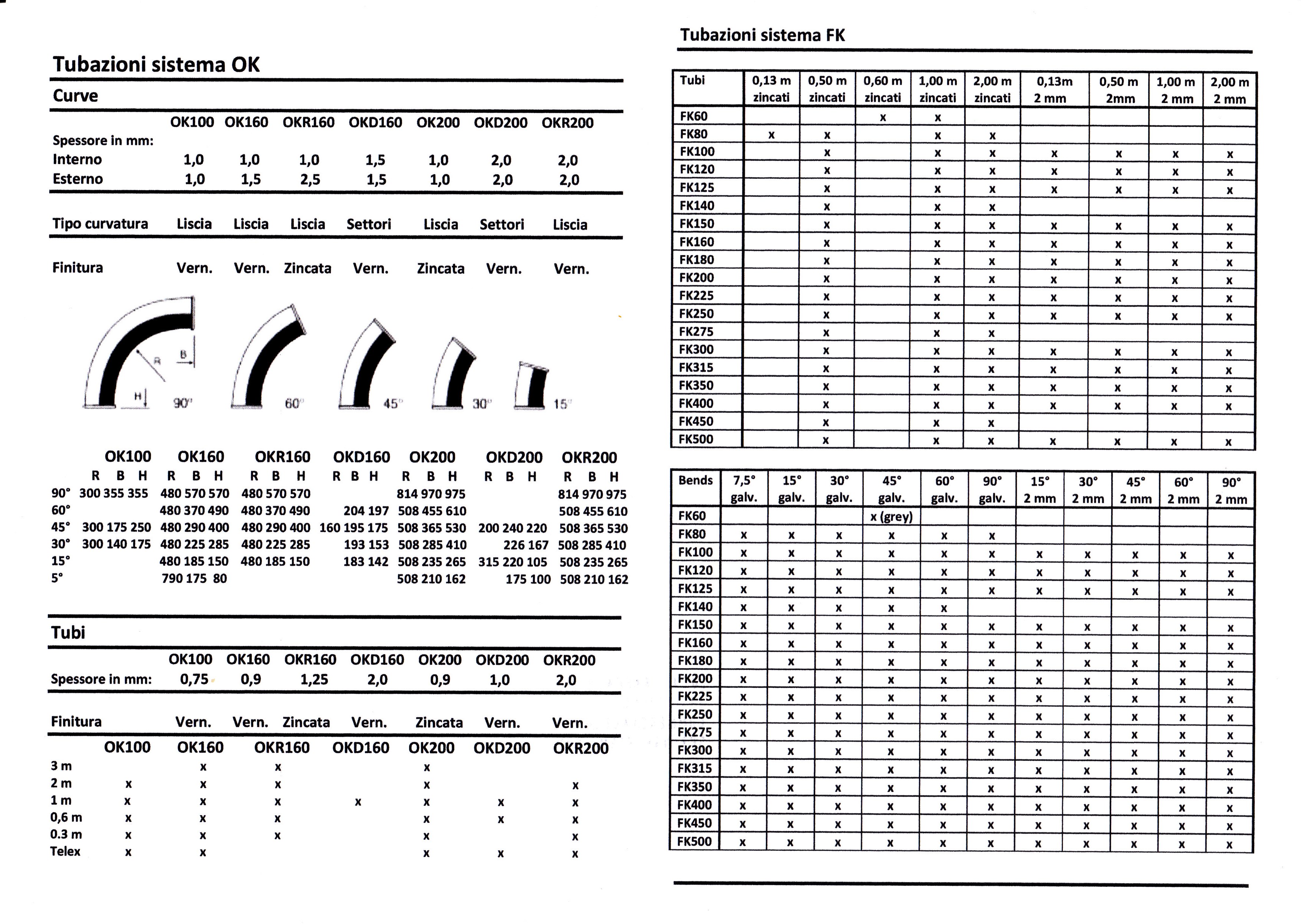

Specifiche componenti tubi serie OK-FK
CLIC su immagine per ingrandire:
brochure pdf - tubi serie OK-FK

brochure pdf - Specifiche componenti tubi serie OK-FK

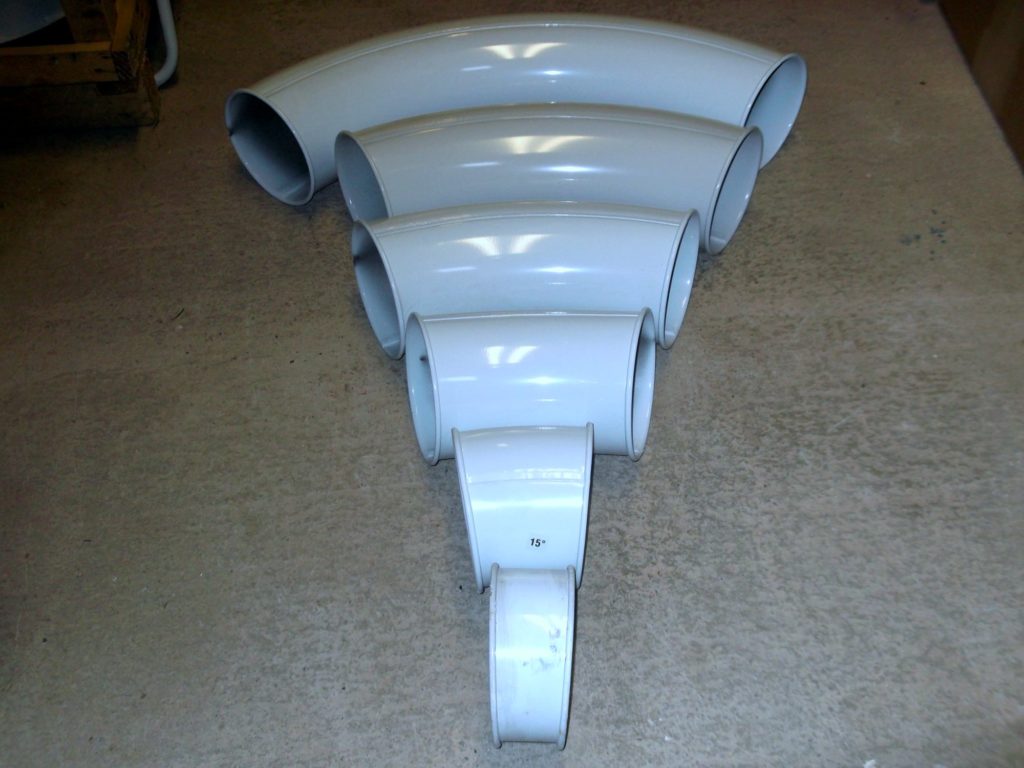

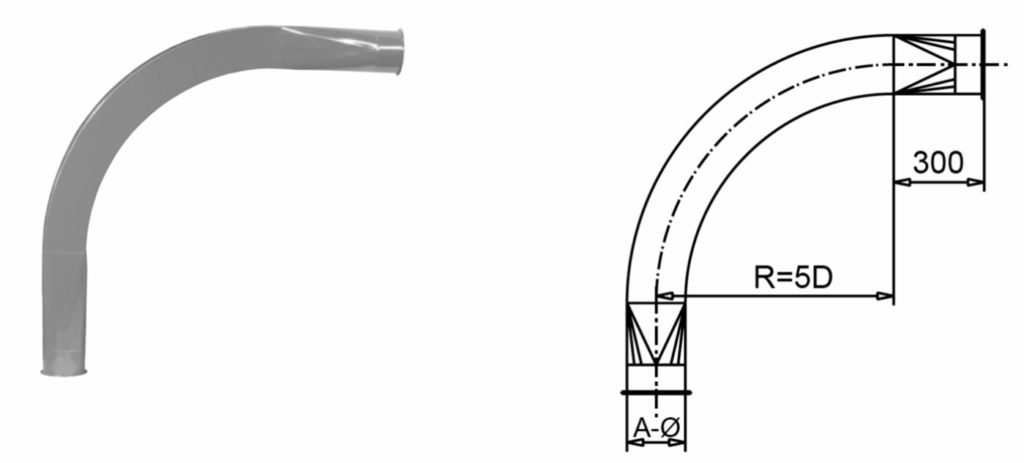

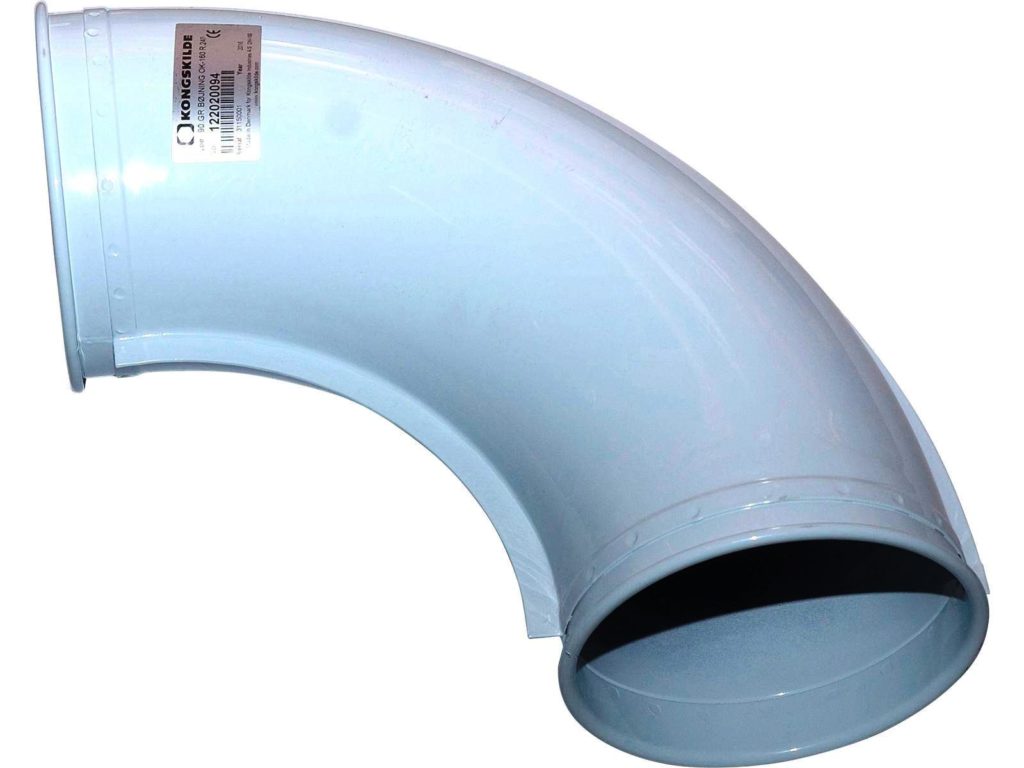

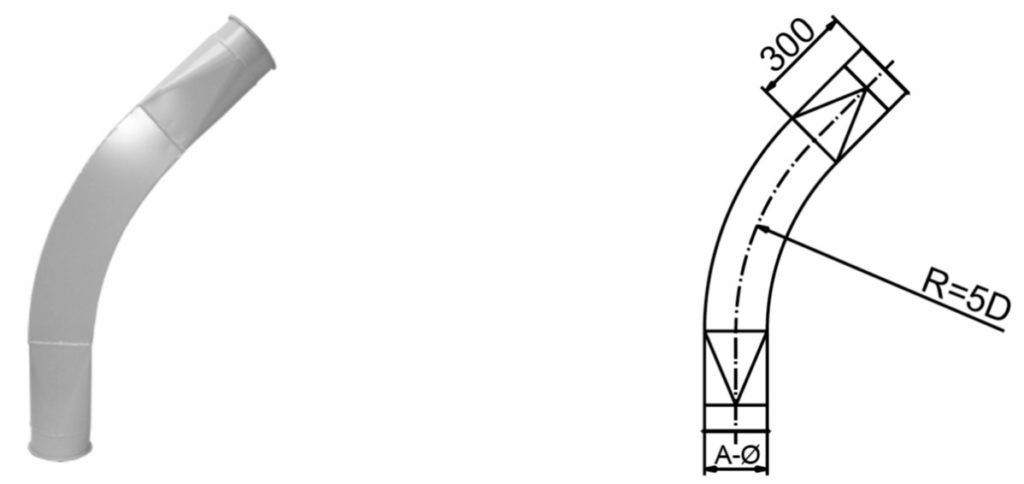

CURVE OKX RINFORZATE per impieghi usuranti

CLIC su immagine per aprire brochure pdf:
curve rinforzate OKX

curve rinforzate OKX

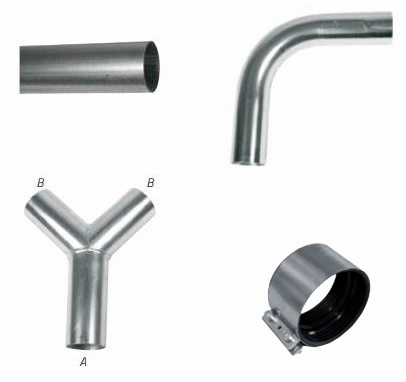

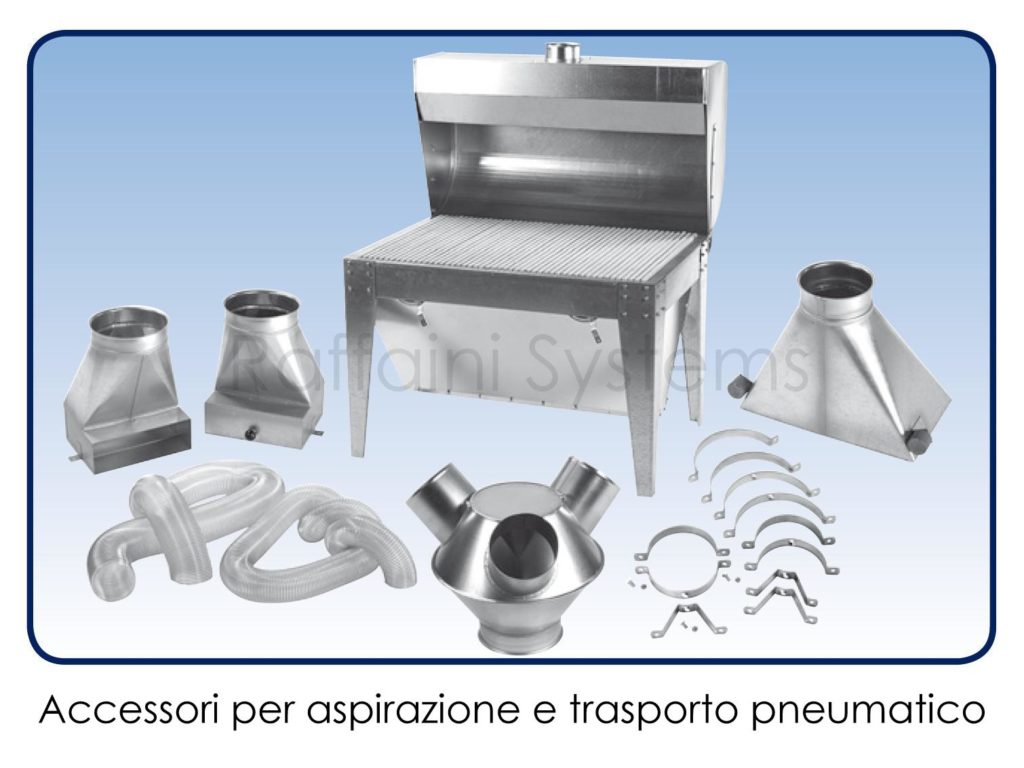

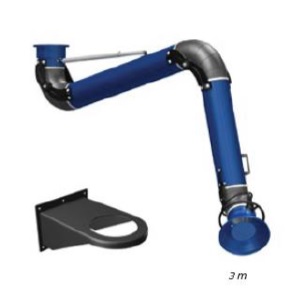

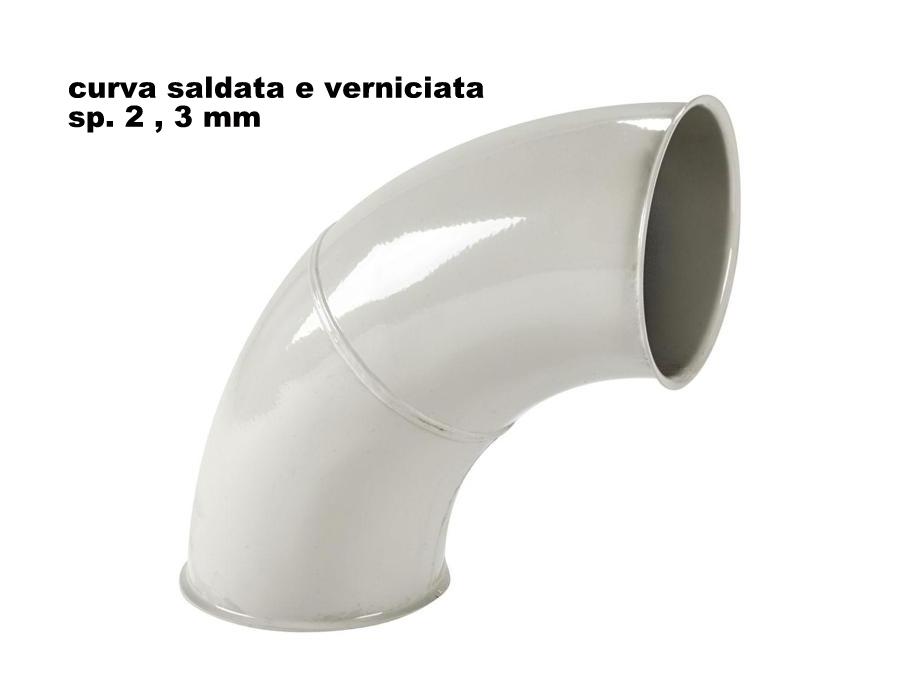

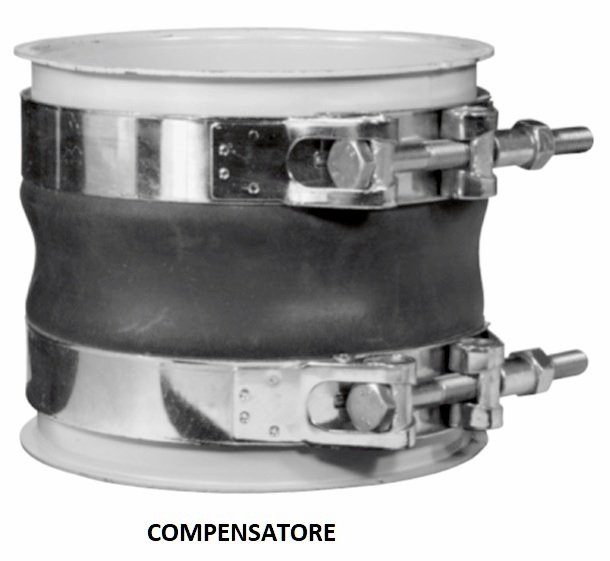

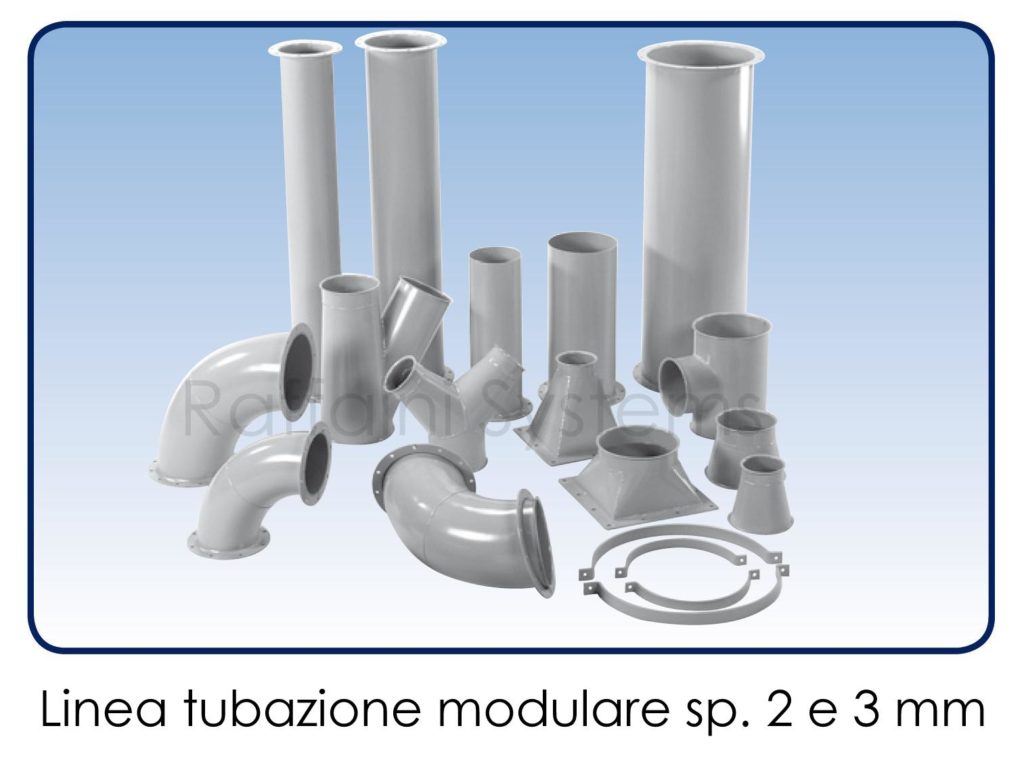

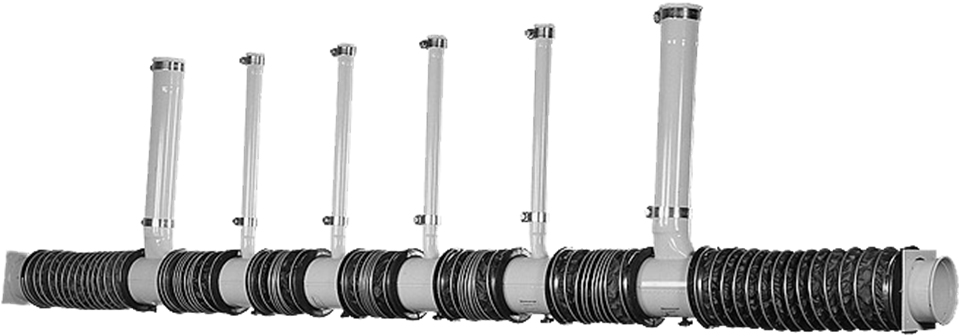

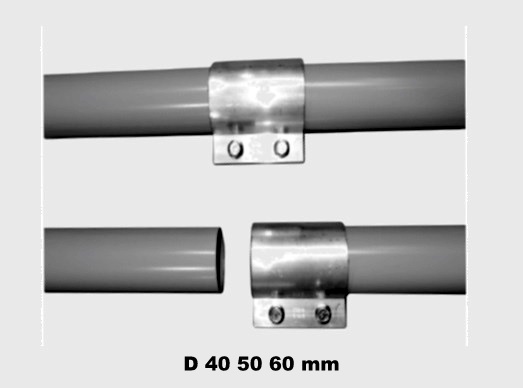

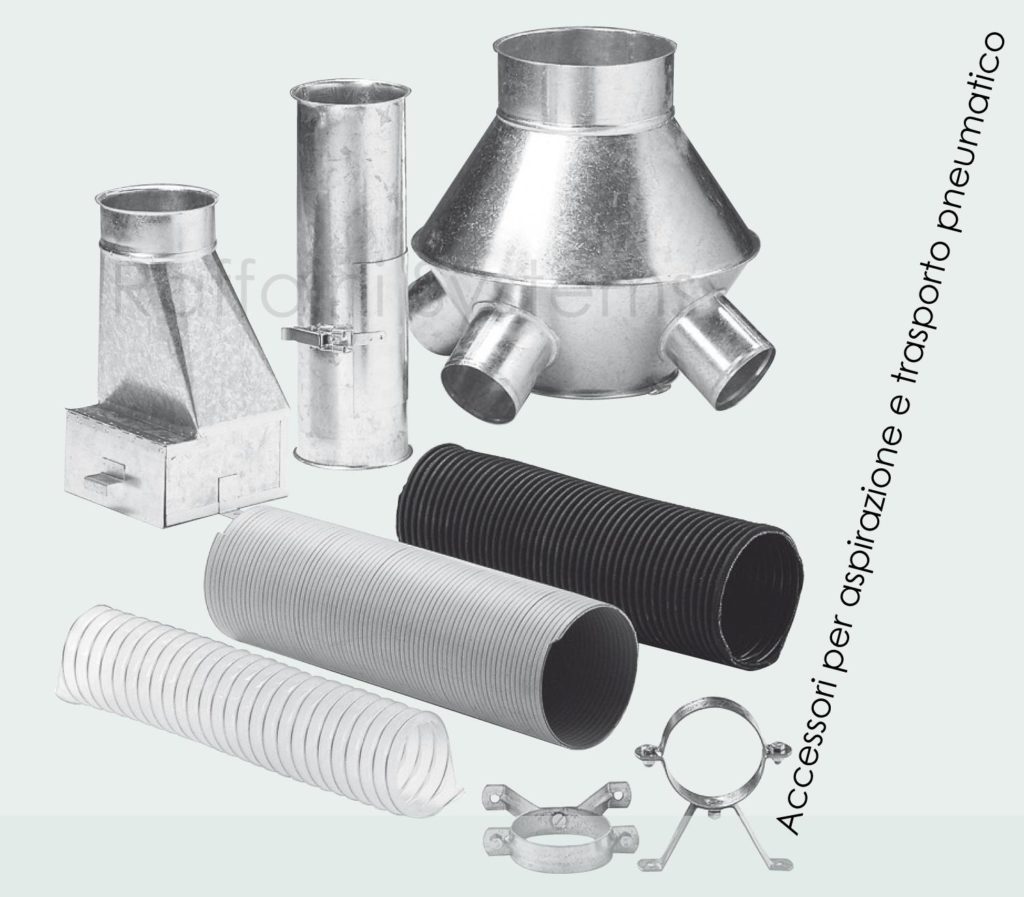

Linea componenti per aspirazione/estrazione in alta pressione

CLIC su immagine per aprire brochure pdf:
BRO tubi per aspirazione ed estrazione in alta pressione

BRO tubi per aspirazione ed estrazione in alta pressione






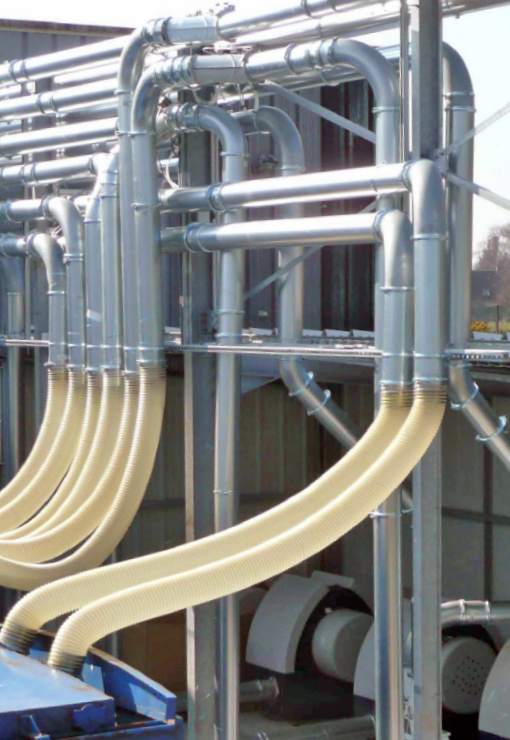

La gamma di tubazioni Kongskilde varia da un diametro di 80 mm sino a 800 mm nelle versioni per basse ed alte pressioni. Tutti i tubi sono disponibili in acciaio zincato o acciaio inossidabile con la possibilità di uno speciale trattamento interno antiadesivo quando è necessario trasportare scarti della produzione di etichette o altri prodotti adesivi.

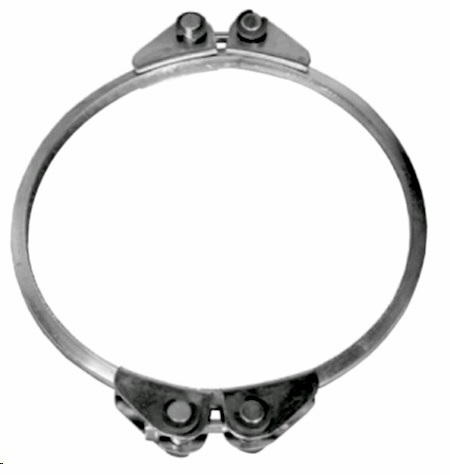

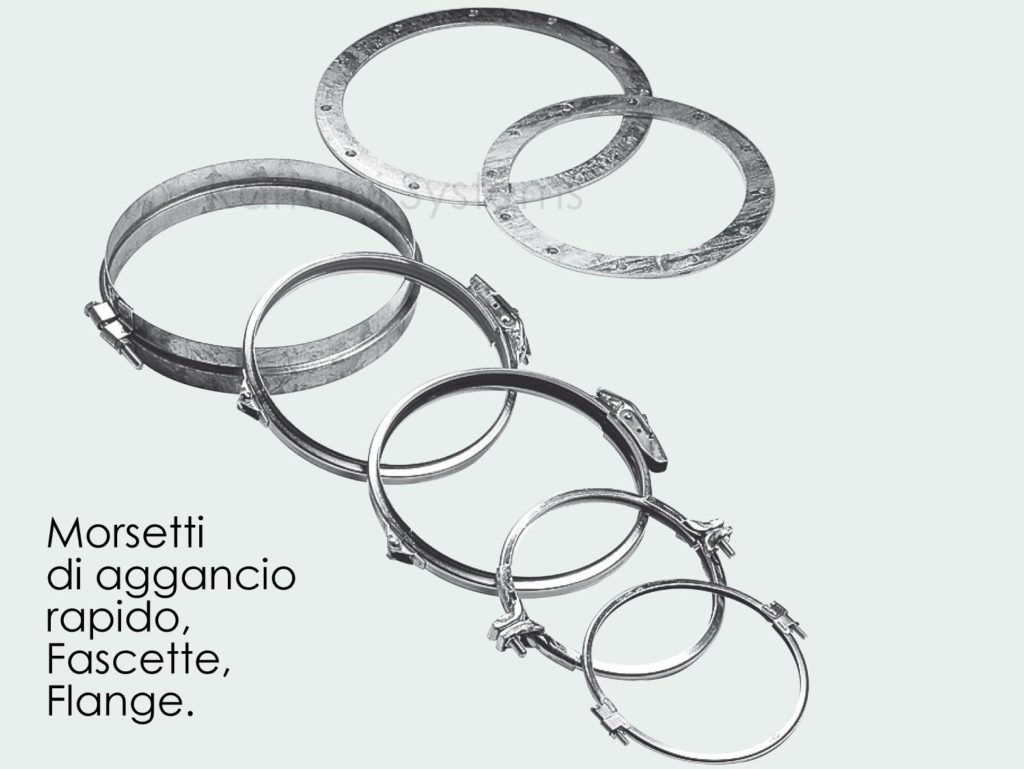

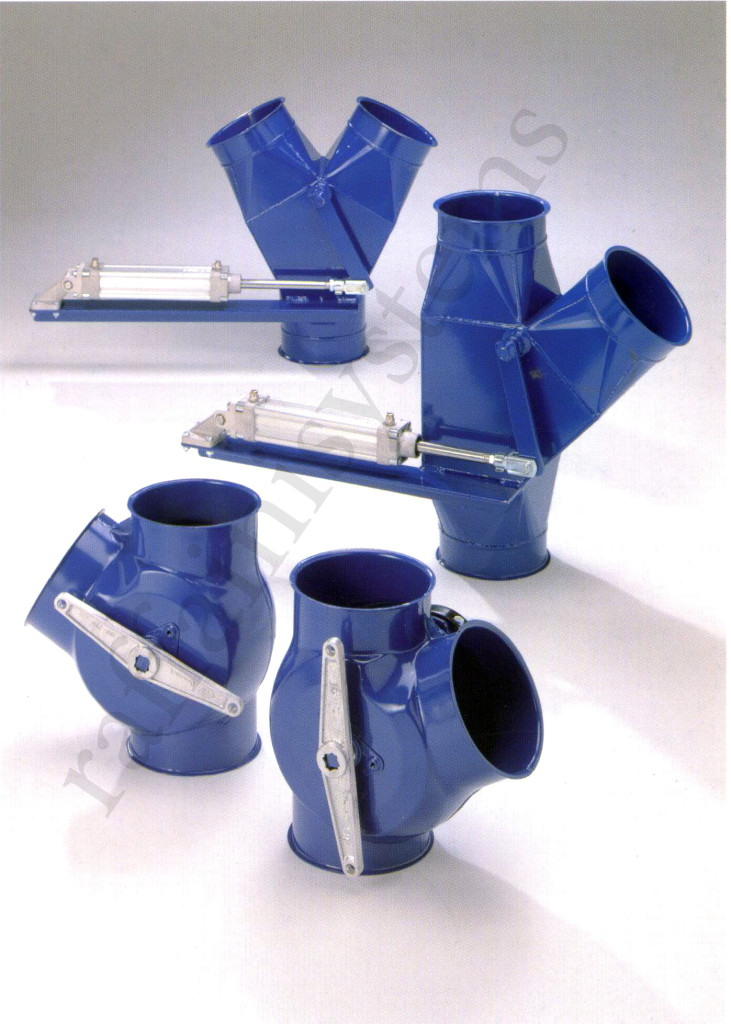

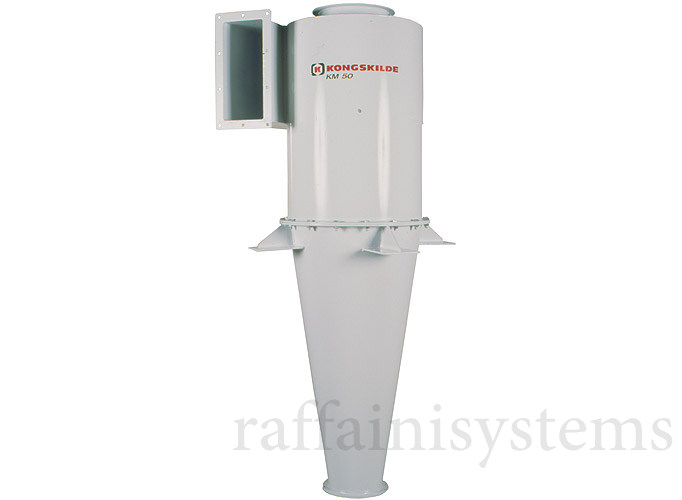

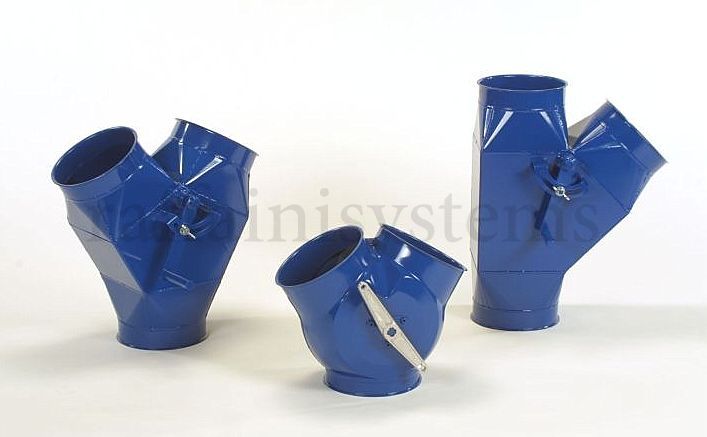

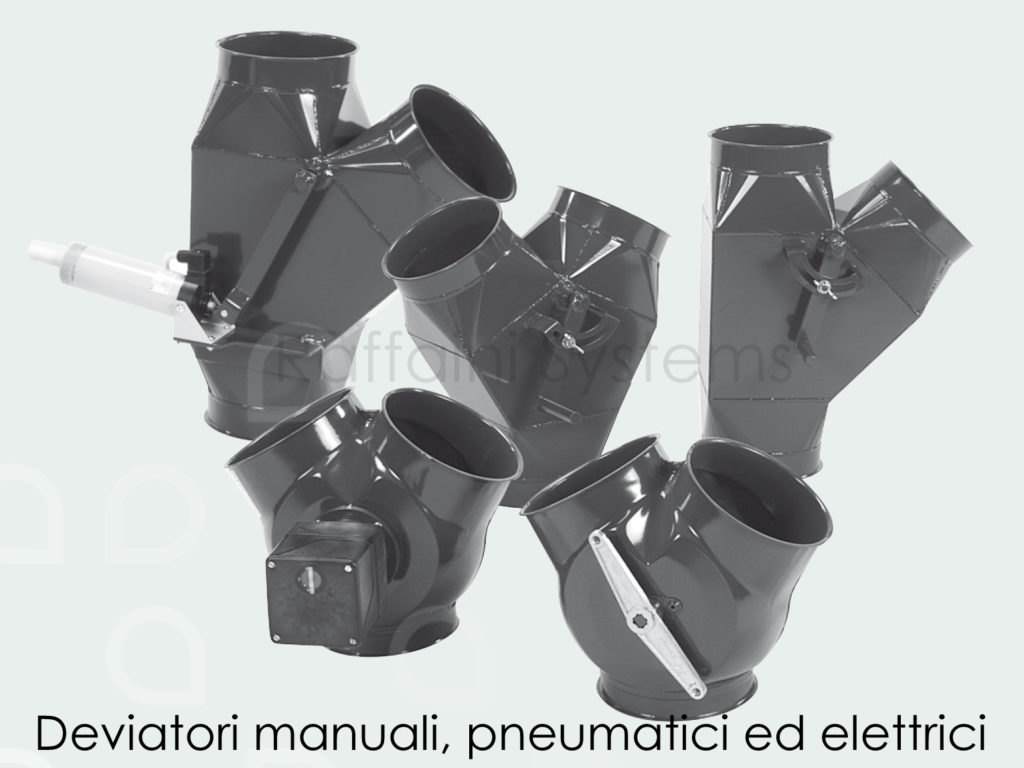

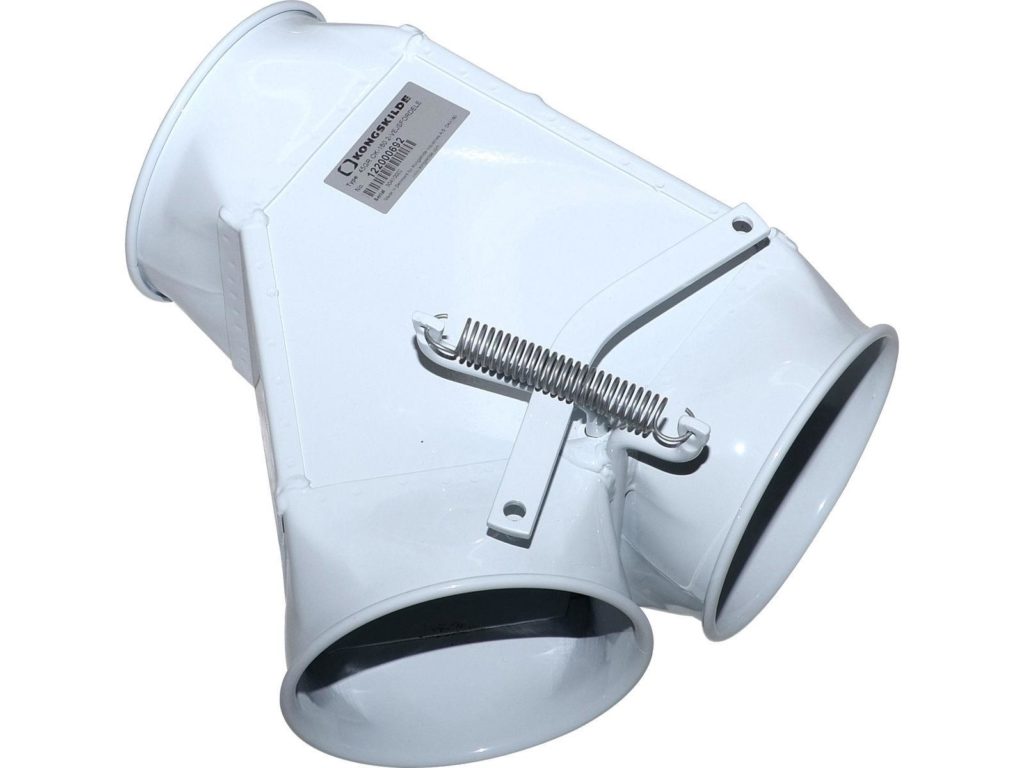

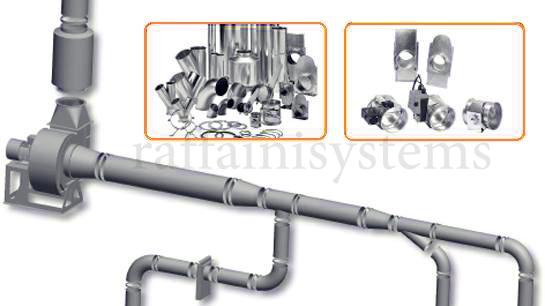

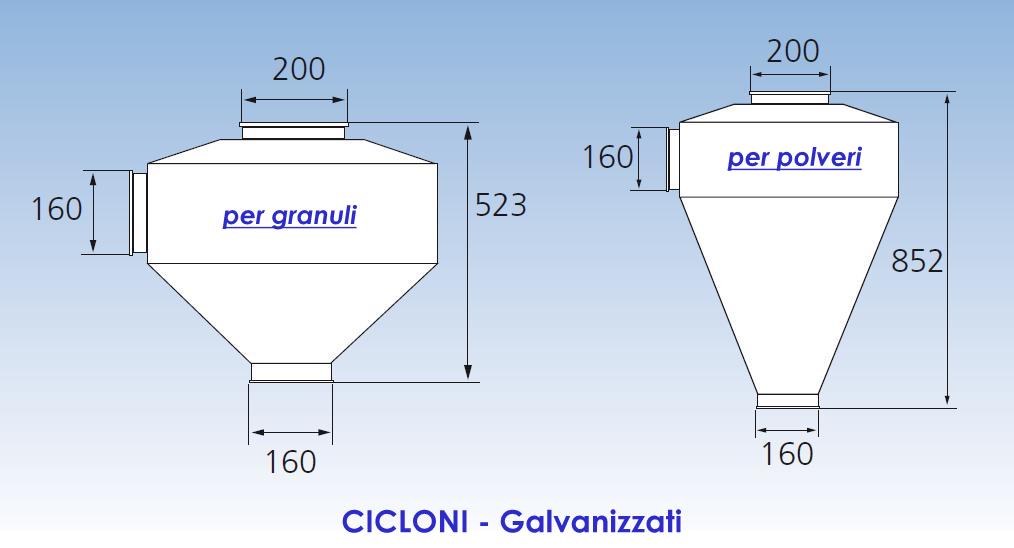

Progettata in forma modulare il sistema di tubazione comprende tubi, curve, diramazioni, deviatori, cicloni e silenziatori, riduzioni ecc.. Tutti i componenti sono collegati tra loro mediante collari rapidi (sgancio rapido) o con chiusura a bullone che permette di ottenere una ottima sigillatura dei giunti che riduce le perdite di carico nei sistemi di trasporto pneumatico.

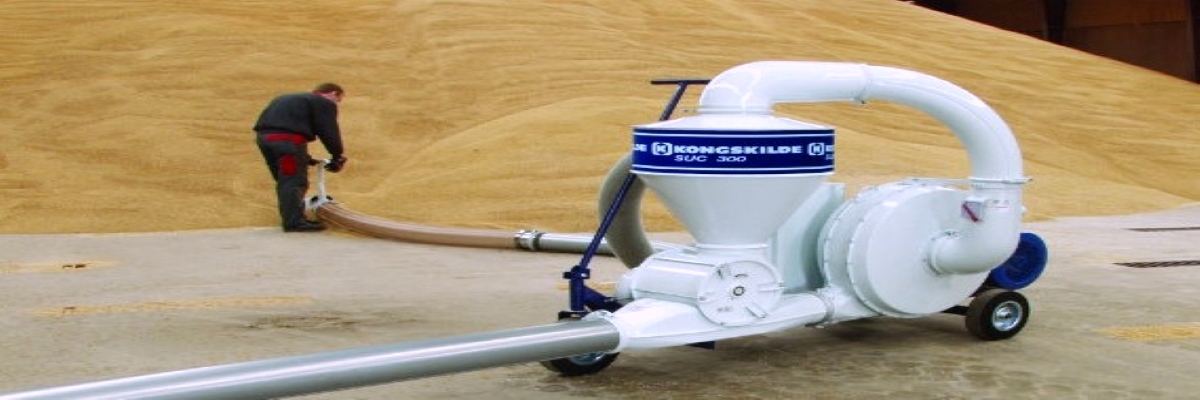

The OK pipe system is ideal for pneumatic and mechanical conveying and for ventilating applications in both farming and industry.

The simple and flexible pipe systems may be adjusted to suit any specific purpose, resulting in shorter conveying distances and therefore the most efficient and economical solutions.

Applications range from the conveying of crops, waste paper, plastic granulates and sawdust to complete ventilation systems.

Customized systems can be supplied

- tailored to meet any specific requirement - whether for conveying or for ventilating.

Robust construction
Tight joints

The sturdily constructed OK pipe system is made from galvanized sheet steel. The rolled pipe ends serve as reinforcements, maintaining the circular shape and ensuring tight joints.

Three pipe diameters

The OK pipe system is available in three different diameters:

OK 100 (100 mm), OK 160 (160 mm) and OK 200 (200 mm). The dimensions refer to the outside pipe diameters.

Selection of wall thicknesses

Choice of wall thickness depends largely on the wear to which the pipe system will be exposed. The wide range of pipes is therefore available in different thicknesses - OK standard, OKR reinforced and OKD extra reinforced (for gravity flow).

Full utilization of the air stream

The advanced production machinery ensures a continuous smooth inner surface of the pipeline, thus giving gentle and efficient conveying - even in downpipes - as well as maximum utilization of the air stream.

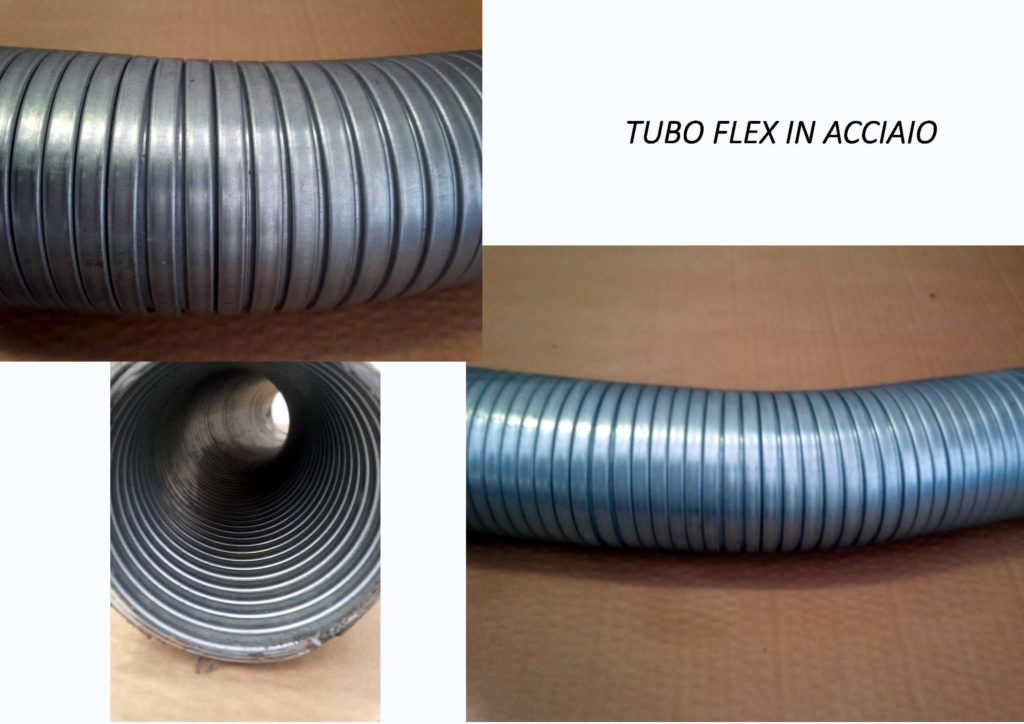

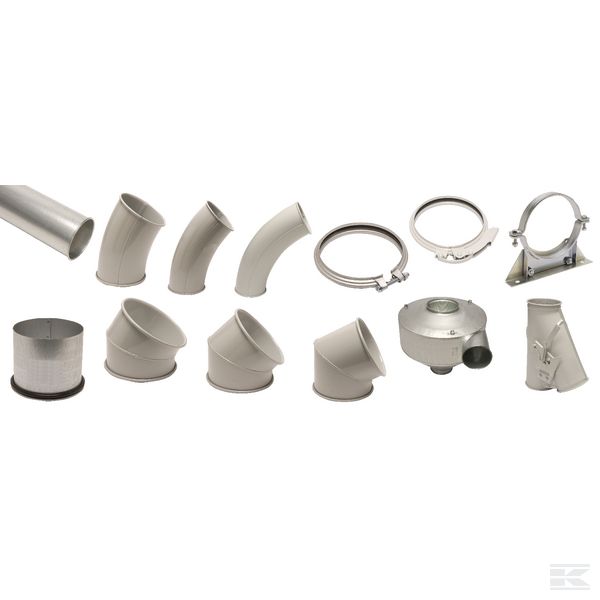

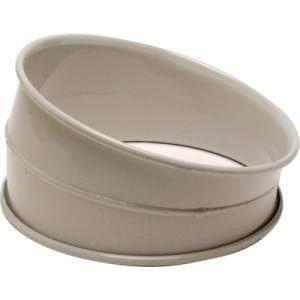

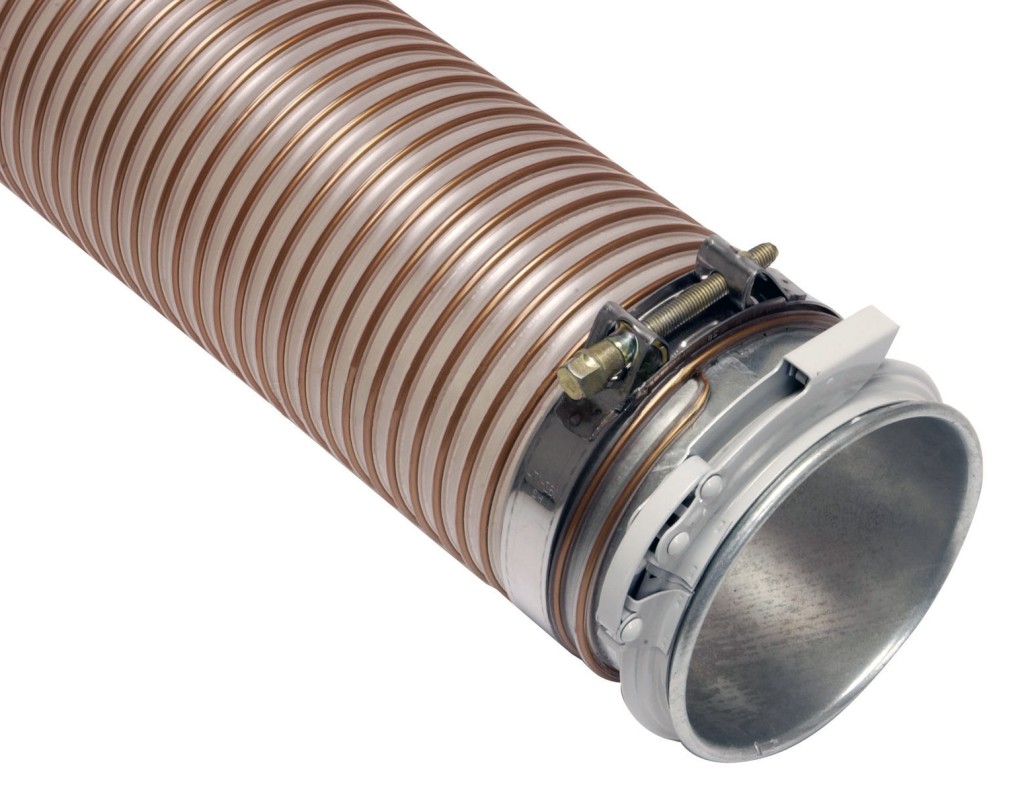

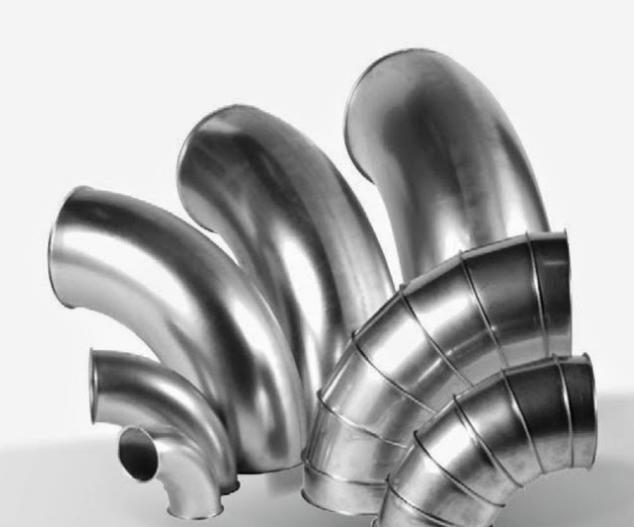

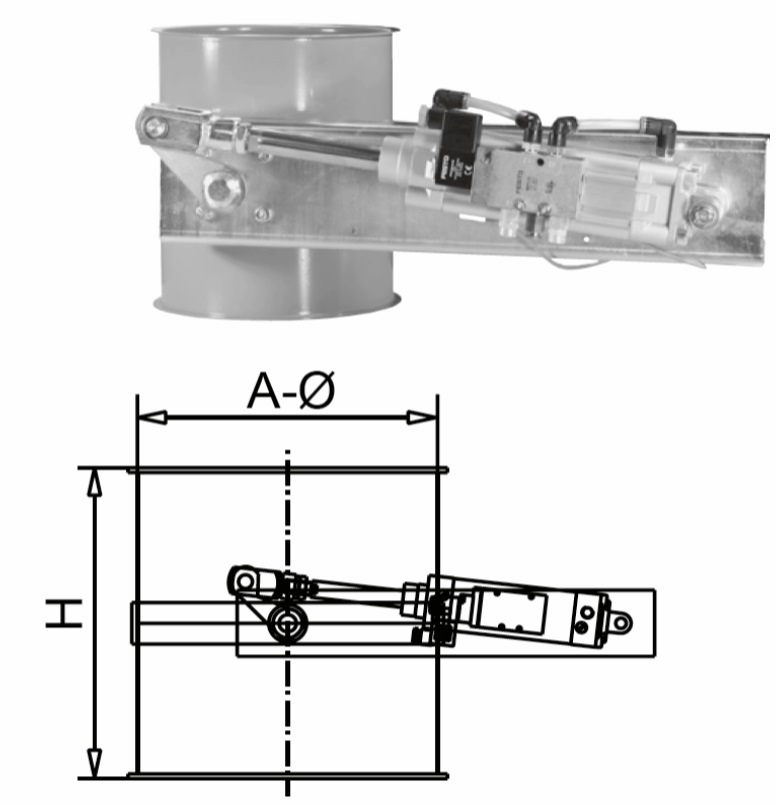

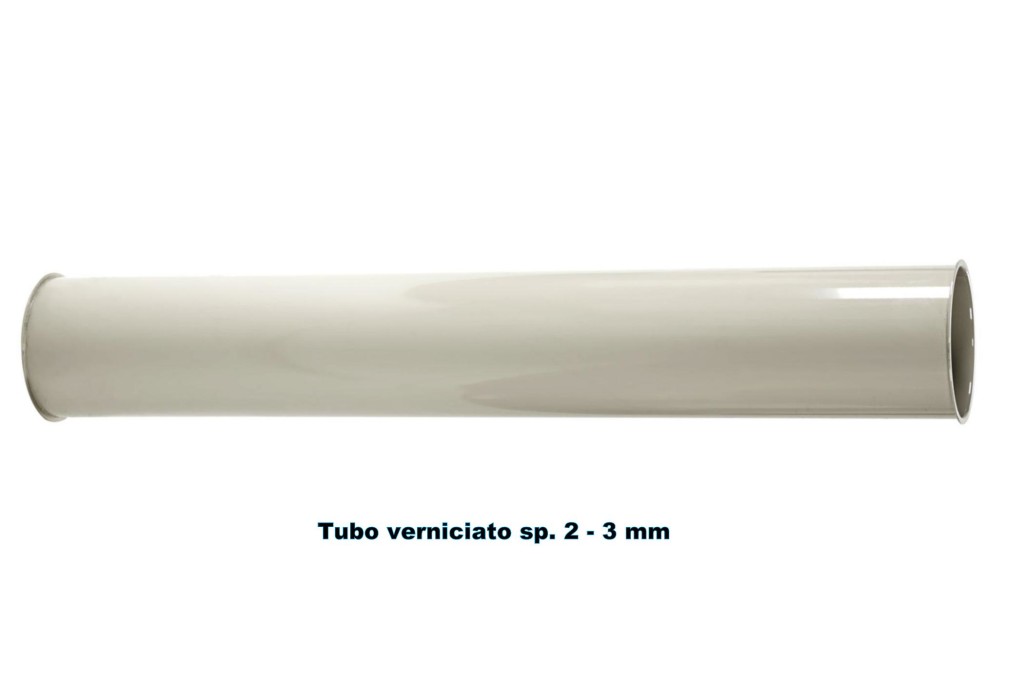

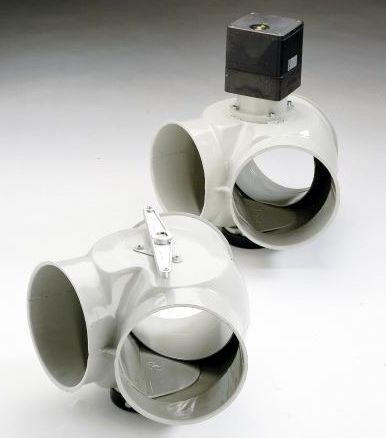

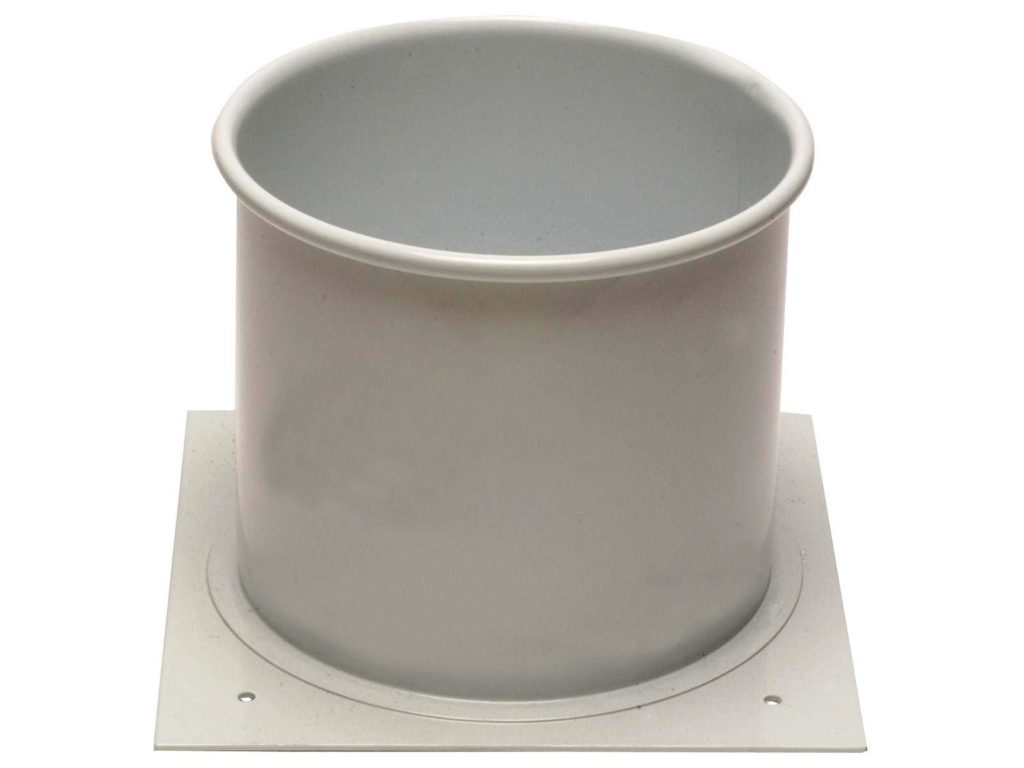

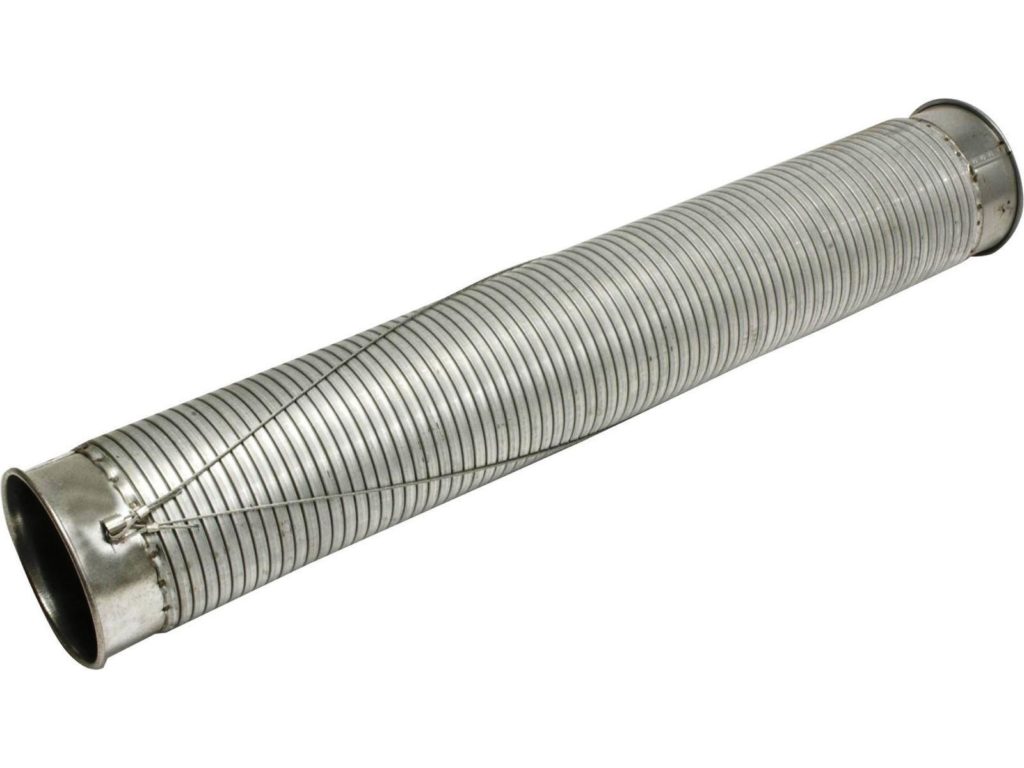

Modular pipe system

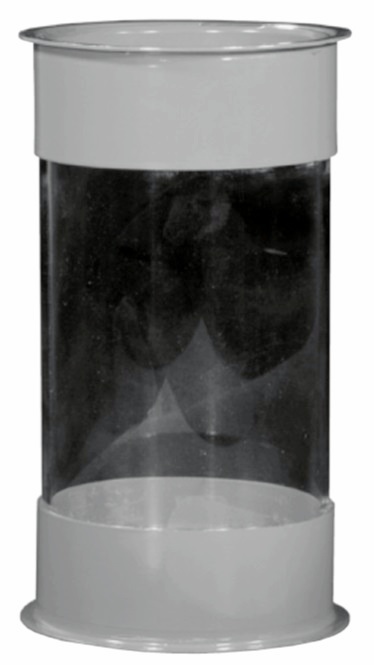

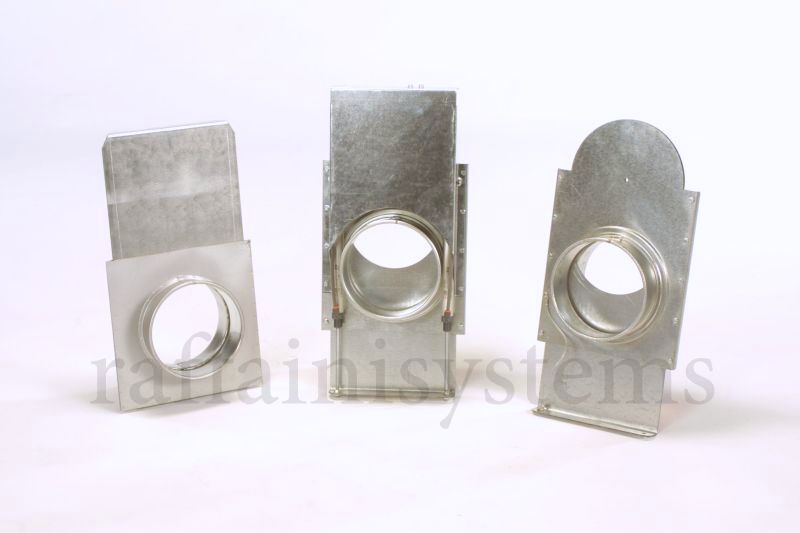

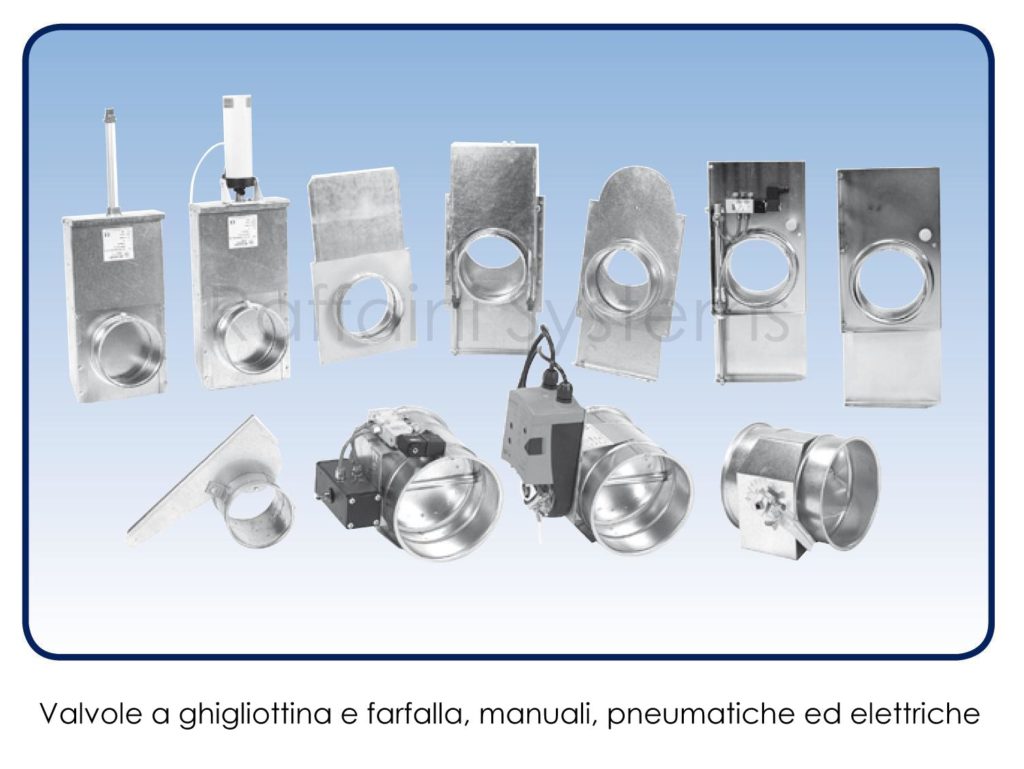

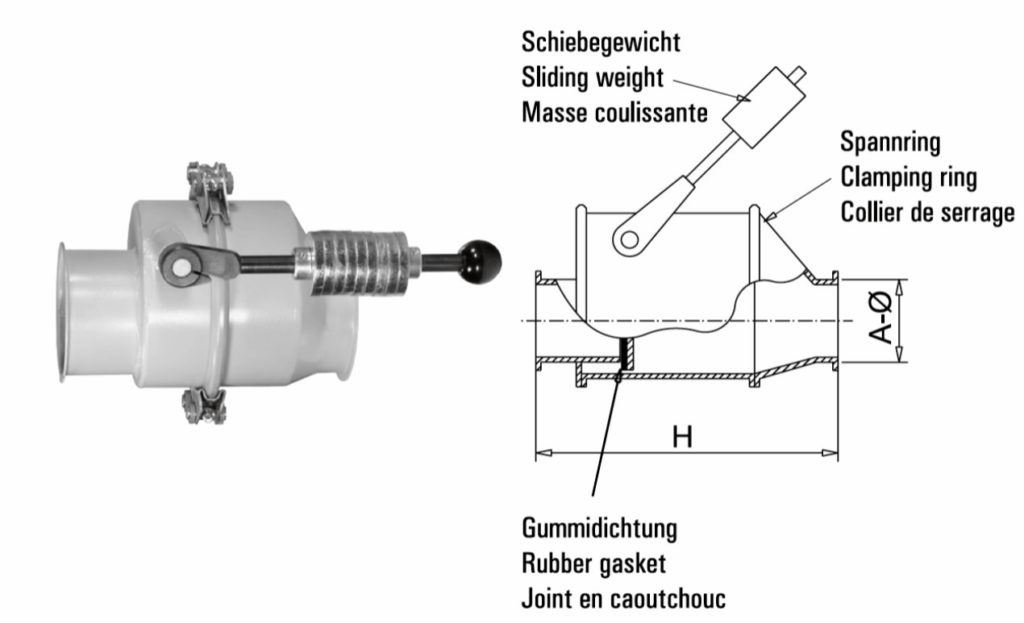

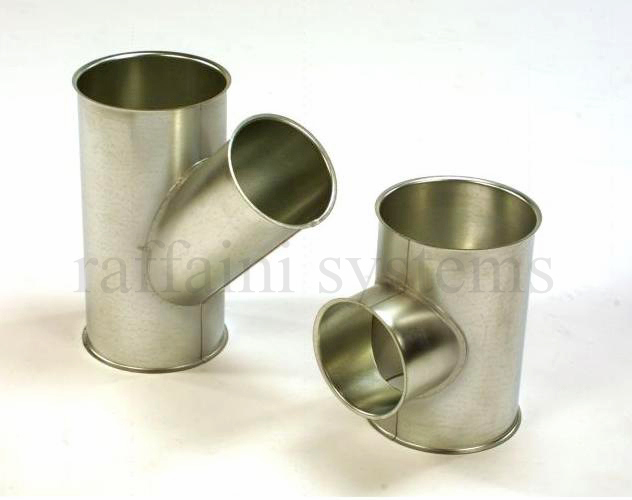

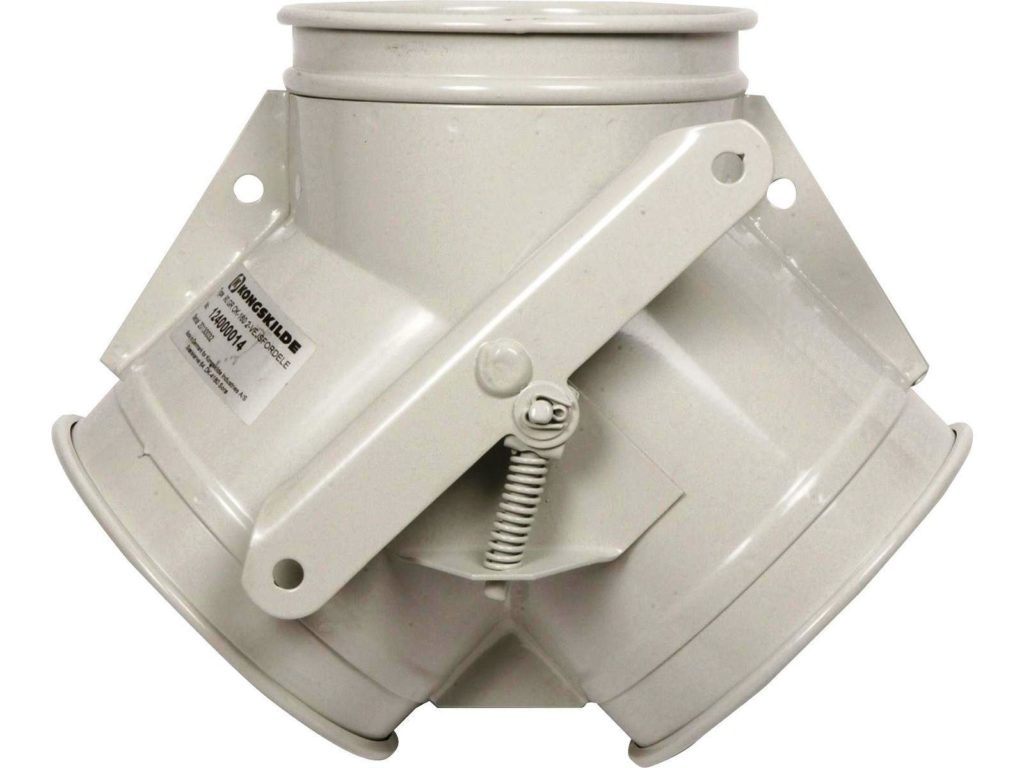

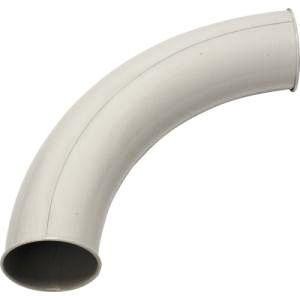

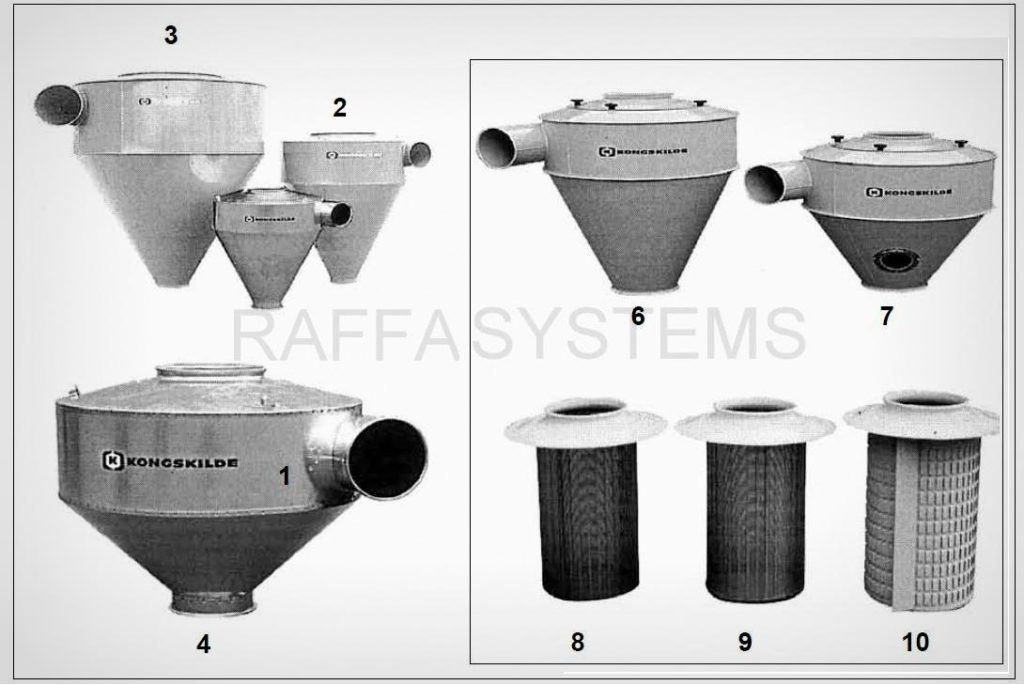

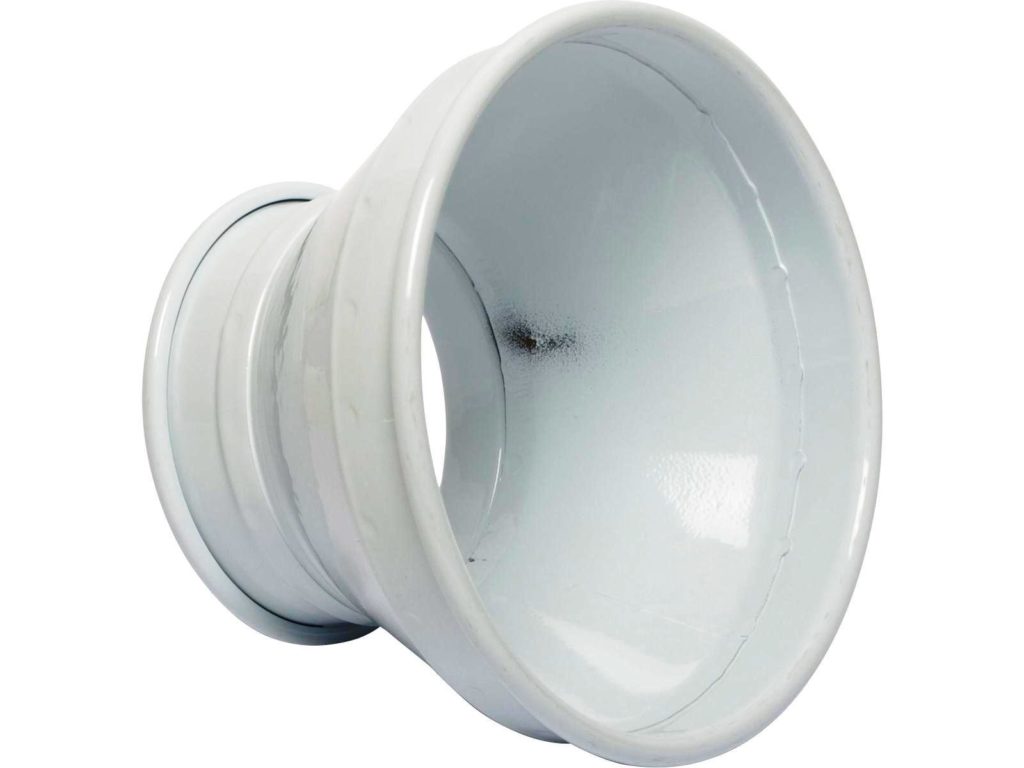

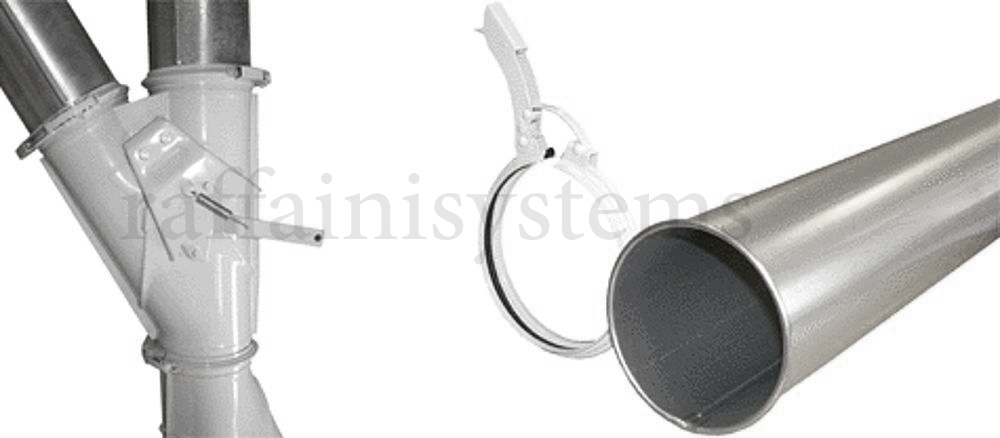

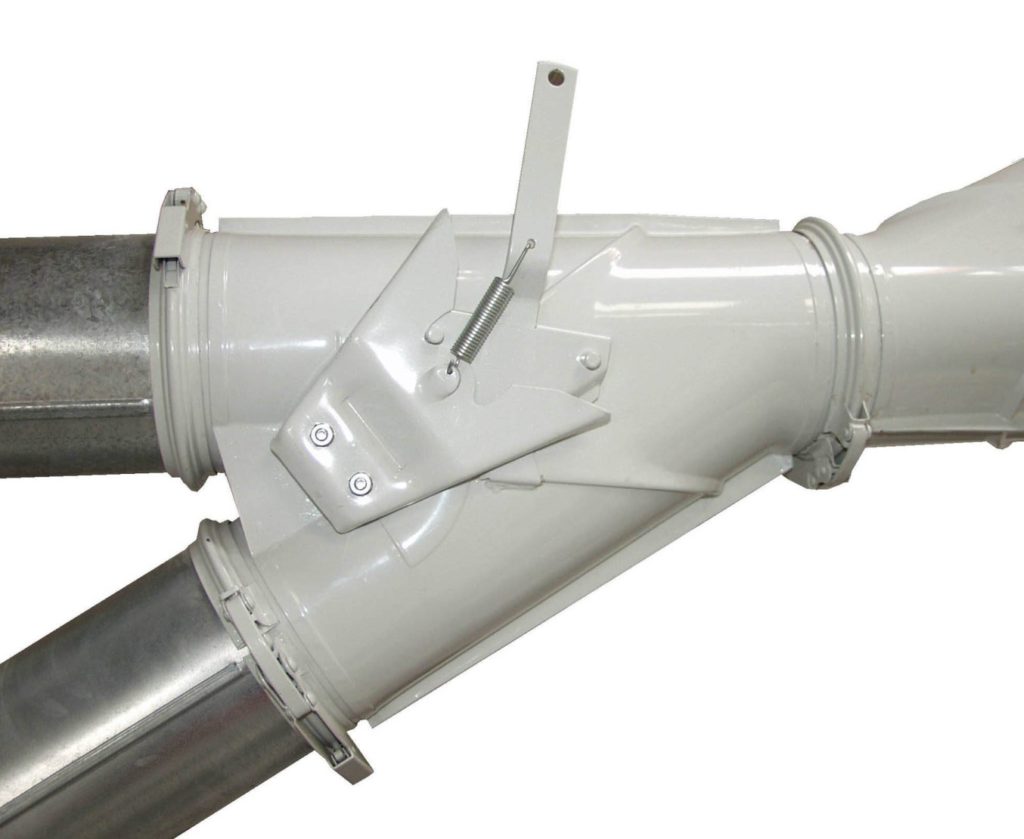

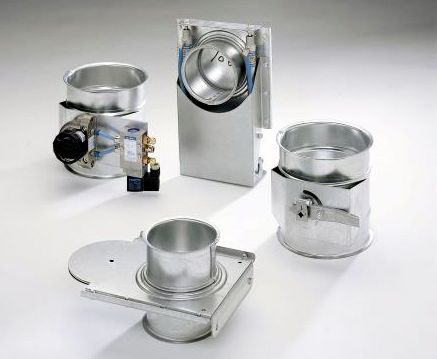

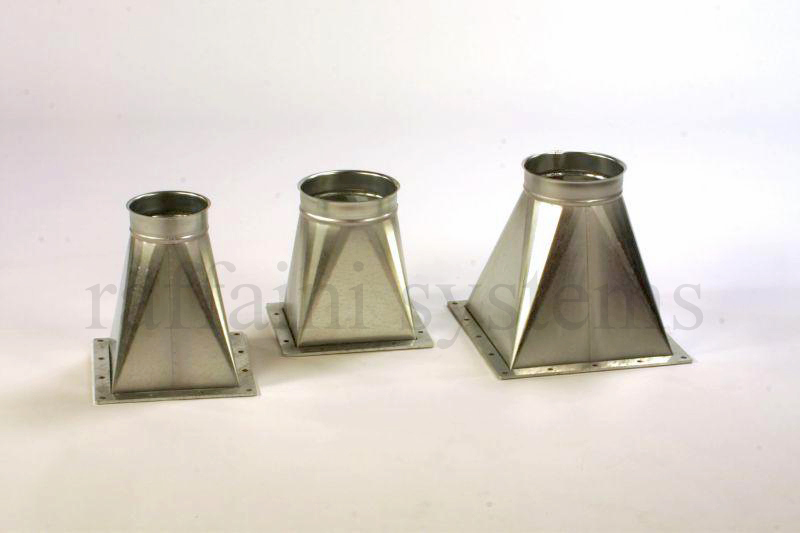

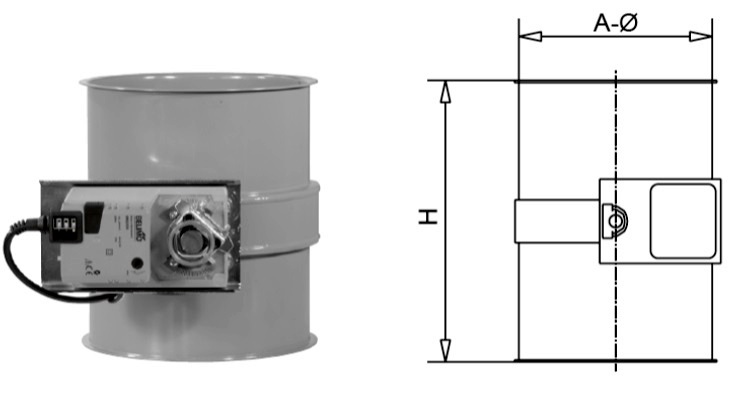

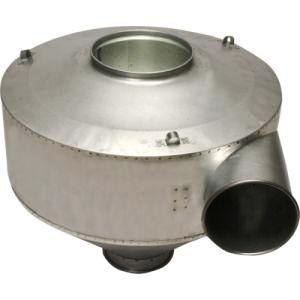

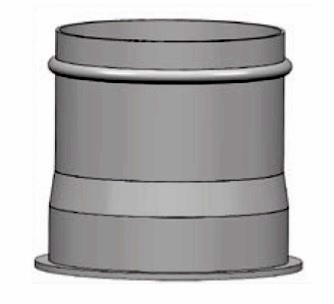

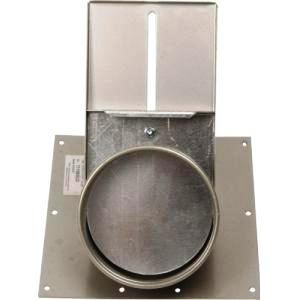

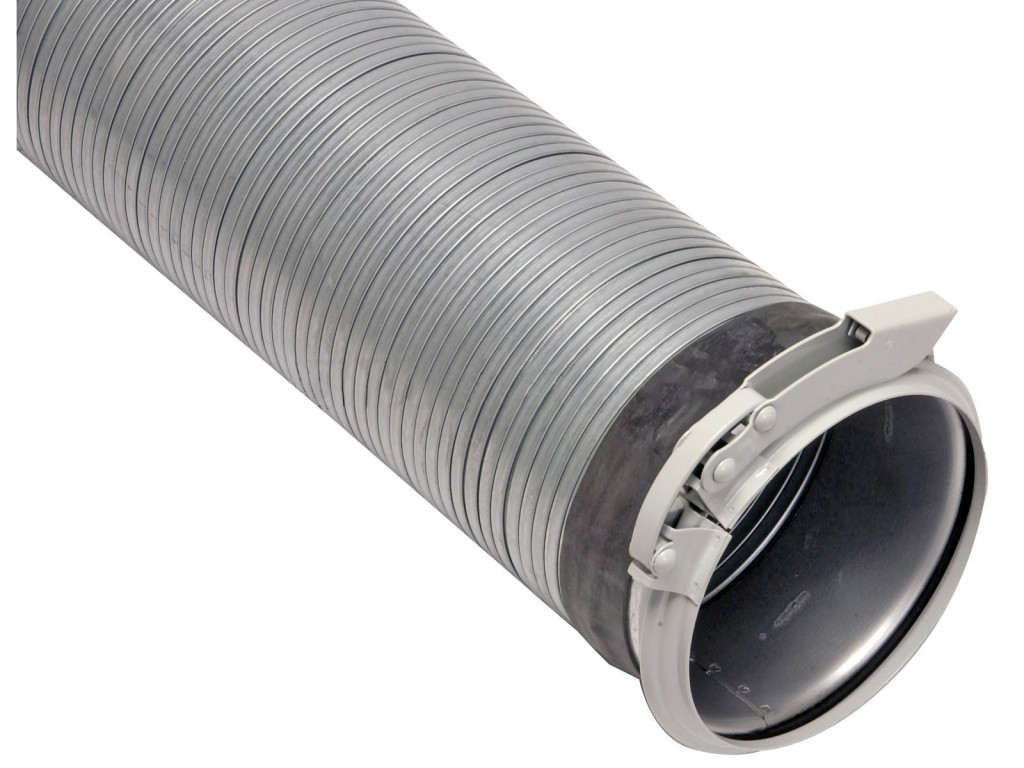

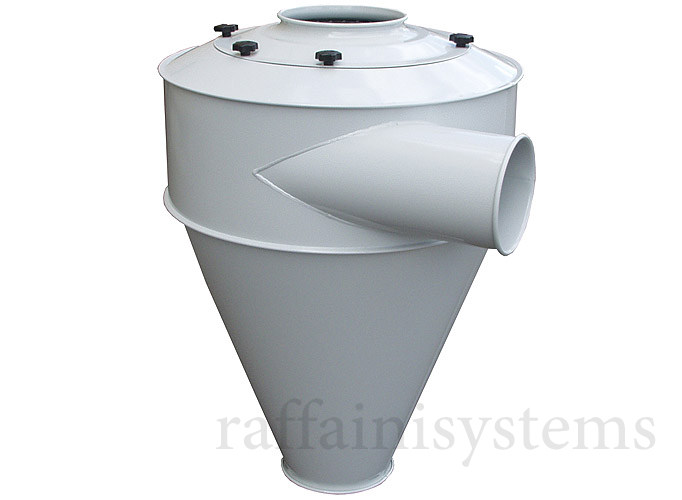

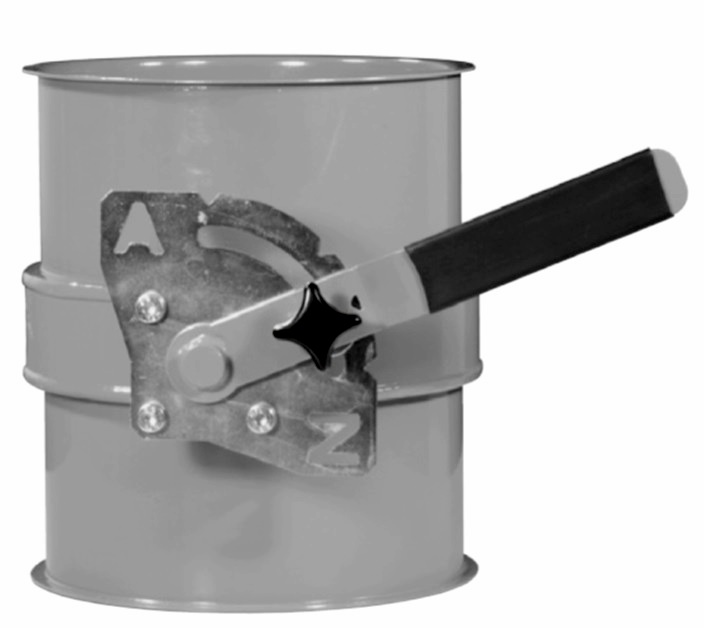

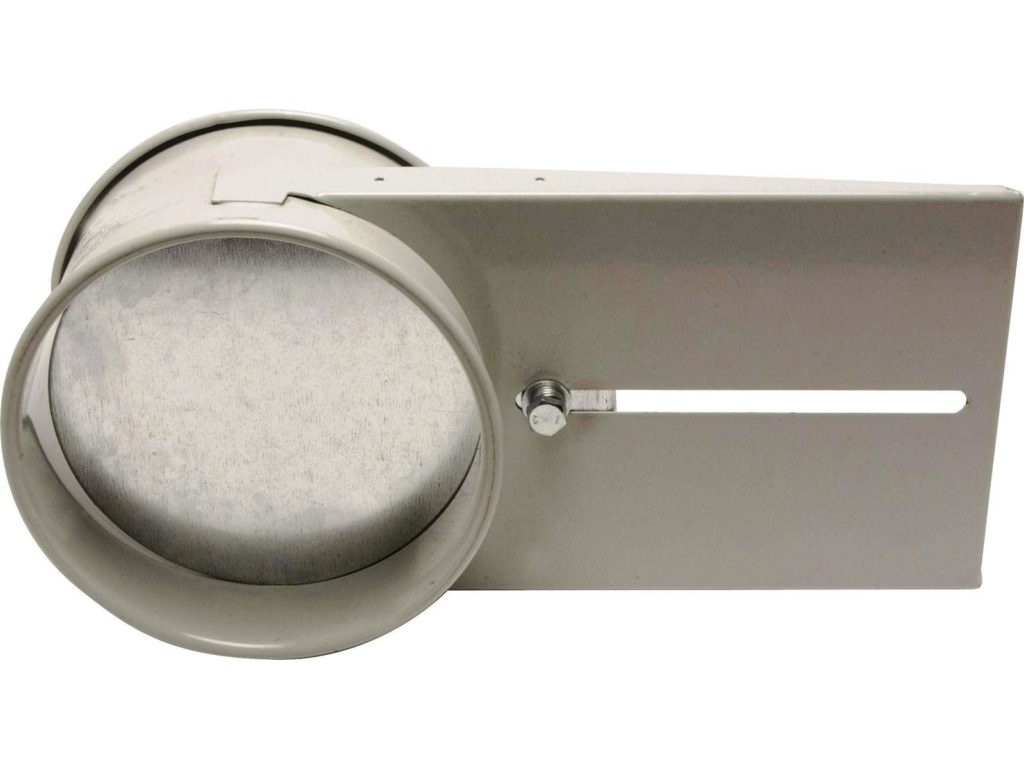

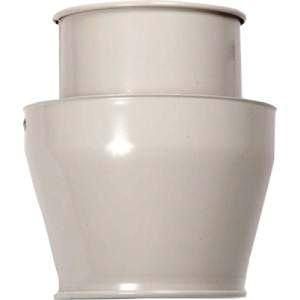

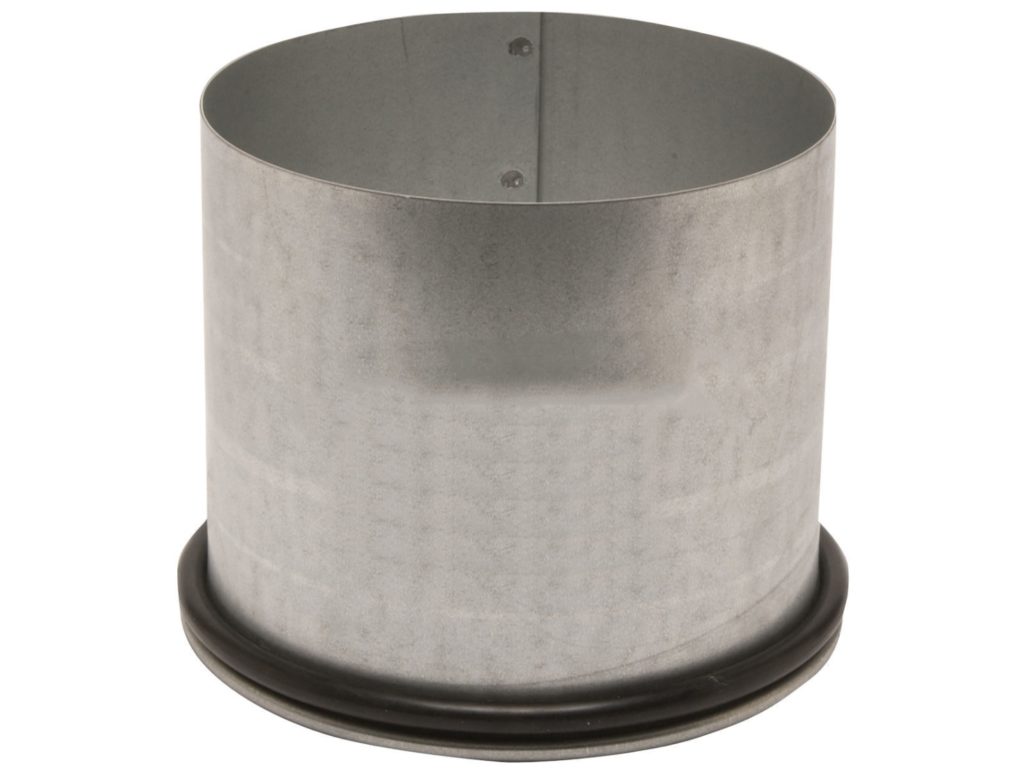

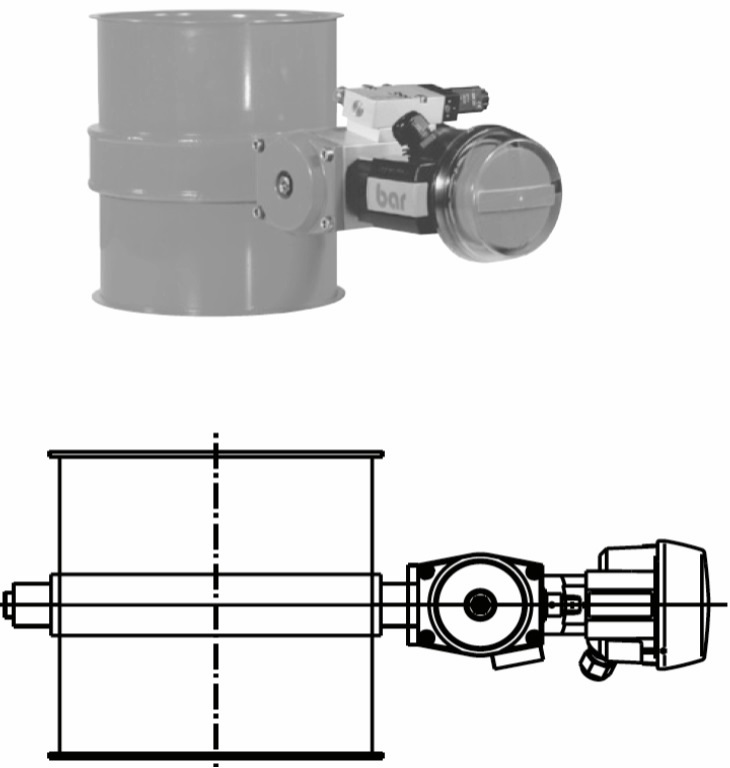

Designed in modular form the OK pipe system comprises pipes, bends, branches, diverters, cyclones, outlets, etc. The components are assembled
quickly and easily using the unique OK quick-release couplings. The wide choice of OK pipes and accessories ensures flexibility and ease of installation in existing buildings.

Temporary and permanent installations

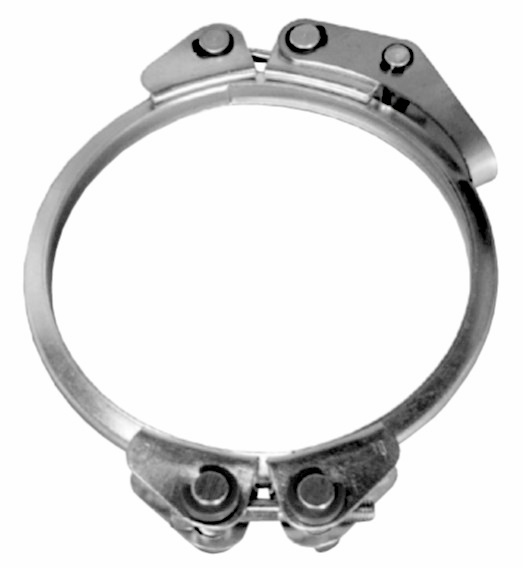

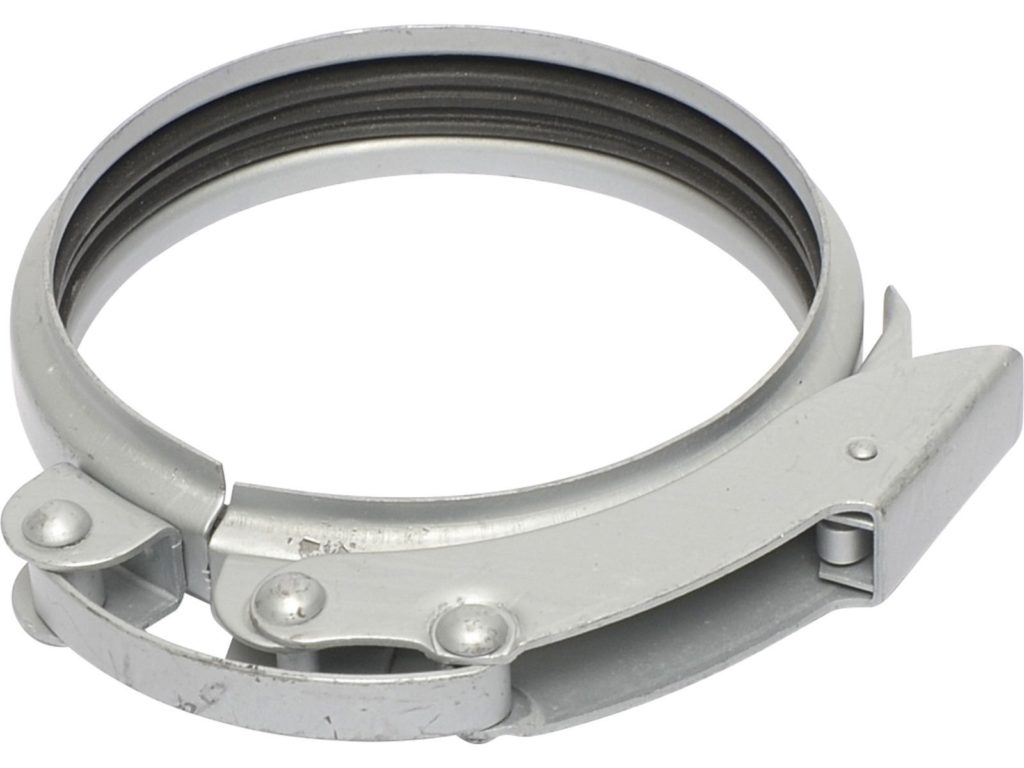

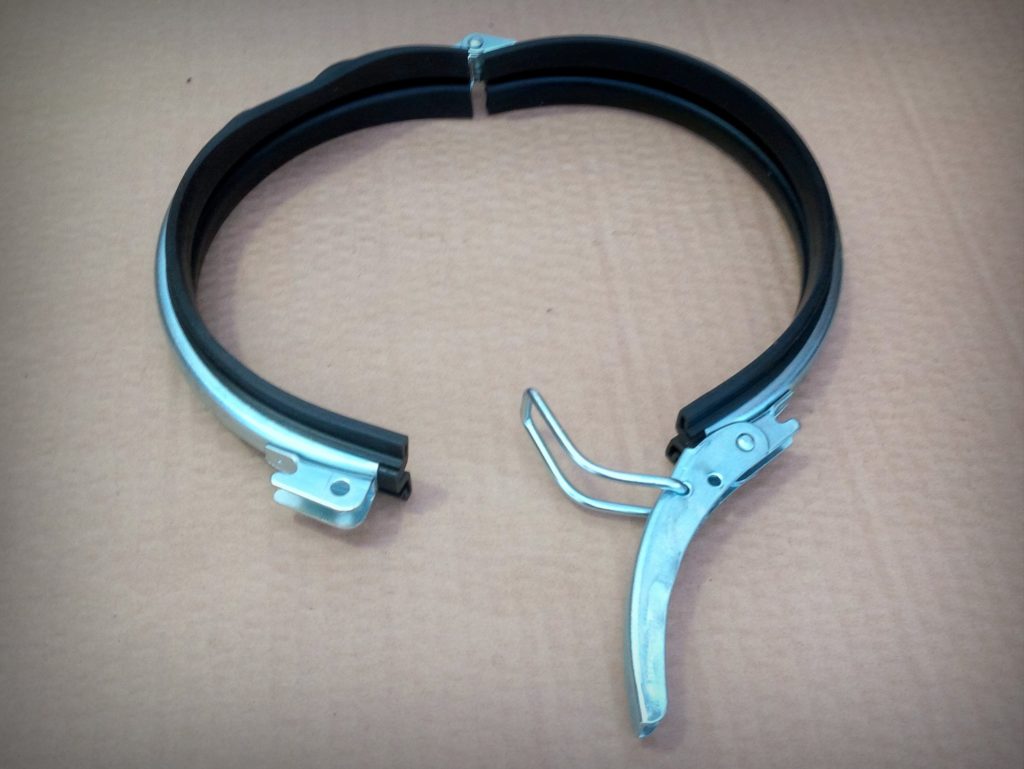

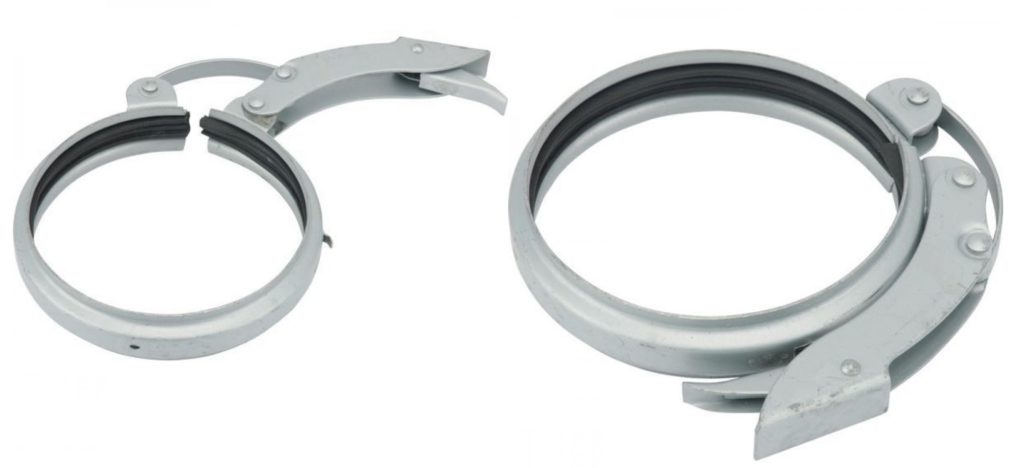

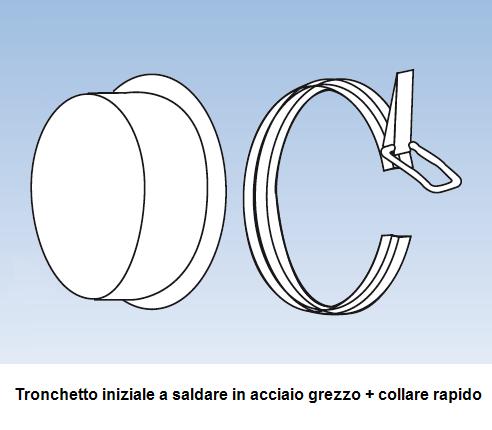

Two types of OK couplings are available for temporary and permanent systems, respectively.

If the pipe system is to be dismantled or altered frequently, it is advantageous to select the OK quick-release couplings for assembly and removal without the use of tools. The relatively low weight of the OK pipes facilitates assembly.

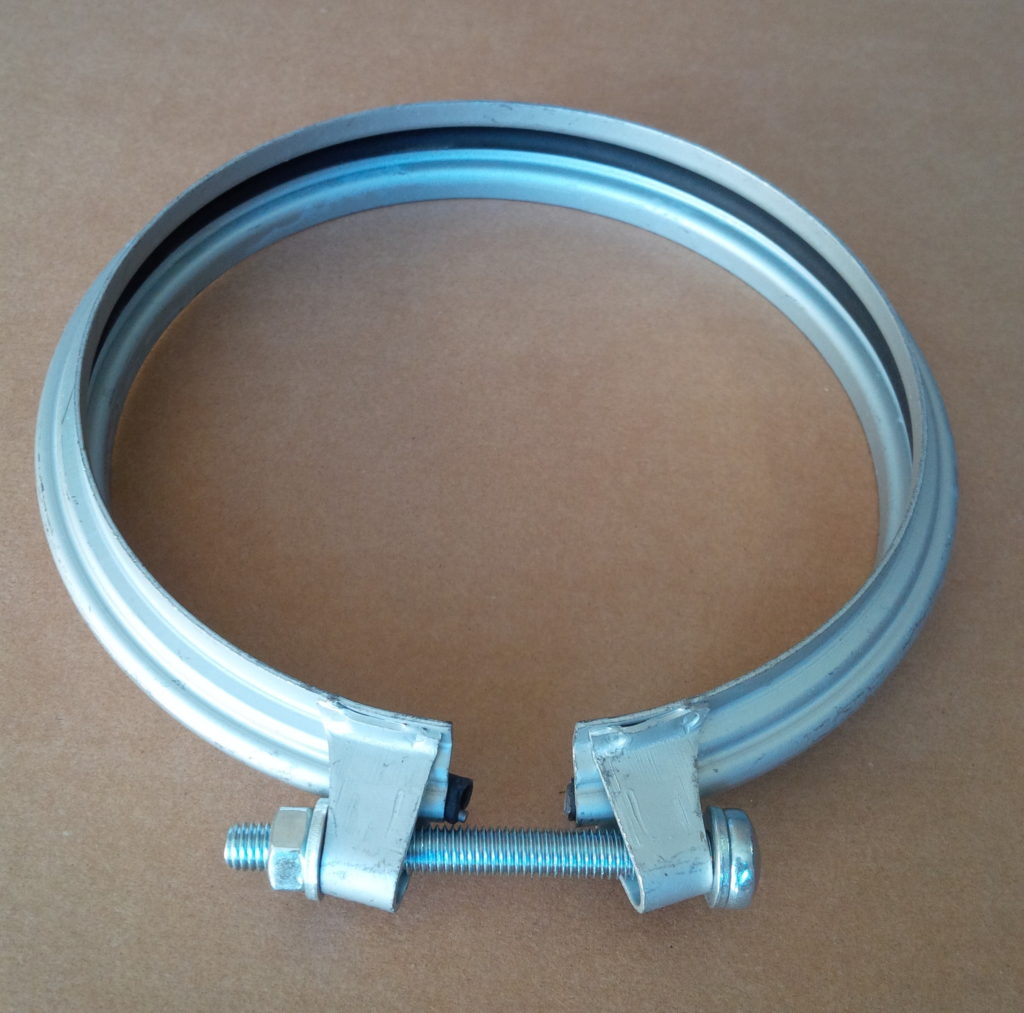

For permanent systems OK bolt couplings are preferable.

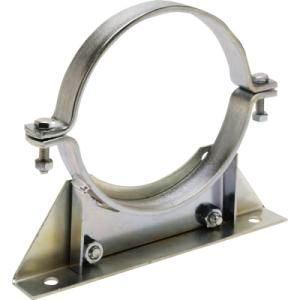

Saving floor space by wall or ceiling mounting

OK pipe supports permit wall and ceiling mounting, thus keeping clear valuable floor space in production pre- mises or storage plants.

Economical in operation

The OK couplings make maintenance and alterations easy tasks. Worn-out parts are replaced and new components added when required. The OK pipe system is so complete that the requirement for special parts will be unlikely.

Modern technology
Competitive prices

The modern manufacturing technology together with the carefully devised modular design and the extensive use of standardized components ensures an efficient system at competitive prices. Inquiries for quotations, without obligation, are always welcome.

Easy ordering

Prompt delivery The following pages give detailed technical information and order numbers of the individual items. To expedite delivery always quote these numbers, as all components are stock items.

Expertise and know-how

The company has supplied pneumatic pipe systems for over forty years. Such experience, of course, adds greatly to knowledge and expertise in this field. Do not hesitate to consult us for an economical solution that will not only meet the demands of today but will also be easy to alter to those of tomorrow. Being one of the leading pipe system suppliers in Europe is both an obligation and a privilege.
